RSA90 | NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU

  • MAP: $751.19 / EA
  • List Price: $938.39 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU
NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU
Click image to enlarge
NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU
NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU

RSA90
NEW ROBUST SERIES ARTICULATING MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HEAVY-DUTY SMOOTH ACTION DU

  • UM : EA
  • Estimated Weight: 42.0

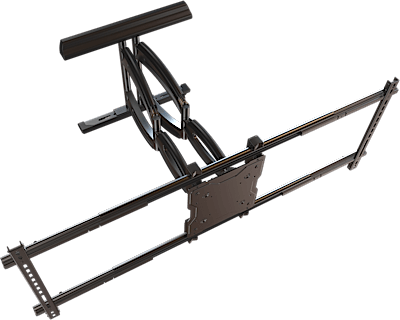

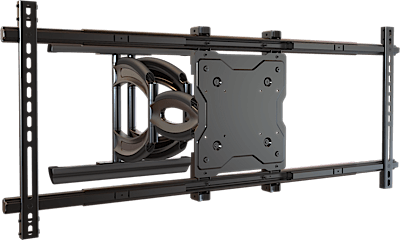

Articulating mount with a heavy-duty dual arm scissor action that provides better balance and smooth movement for large-format 70 to 90″ TVs. Post-installation leveling compensates for uneven ceilings as well as the natural sag experienced with 100lb+ TVs. Post-installation lateral and vertical adjustments facilitate precision positioning and provide needed installation flexibility for recessed applications.

Features:

  • Universal design
  • VESA compatible
  • Smooth action dual scissor arm provides balance
  • Post-installation lateral and vertical adjustments facilitate precision TV positioning
  • Post-installation leveling compensates for uneven ceilings
  • Cord management feature ensures a clean-looking installation
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
TV size range 70" – 90"
Weight capacity 300lb (136kg)
Max mounting pattern 887x701mm
VESA mounting patterns 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm, 800x600
Depth from wall 3.4" (86mm)
Max extension 27" (686mm)
Tilt +15°/-5°
Pivot 50°
Roll (side to side) 6°
Mounting surface wood stud, concrete or cinder block
Stud spacing dual stud 16" on center
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product Weight 33.7lb (15.3kg)
Package specifications 30"x20"x6.4"
Color black
Warranty 10-years
