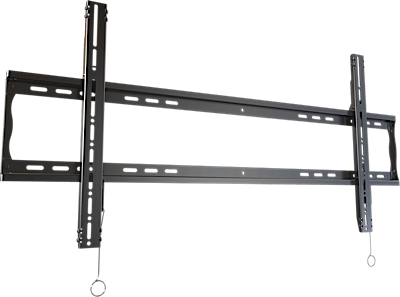

RSF90 | NEW ROBUST SERIES FLAT MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HORIZONTAL ADJUSTMENT AND POST-INST
RSF90
NEW ROBUST SERIES FLAT MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HORIZONTAL ADJUSTMENT AND POST-INST
RSF90
NEW ROBUST SERIES FLAT MOUNT FOR LARGE-FORMAT 70 TO 90" TVS WITH HORIZONTAL ADJUSTMENT AND POST-INST
- UM : EA
- Estimated Weight: 11.4
Flat mount with triple stud mounting that facilitates the most secure installation for heavier large-format 70 to 90″ TVs. Includes a horizontal slide mechanism that helps center the TV on the wall as well as post-installation leveling that compensates for uneven ceilings and enables a perfectly positioned TV. A unique all steel click-in-place feature simplifies the installation by eliminating the need to reach up behind the TV with a wrench or screwdriver to secure or remove it.
Features:
- Universal design
- VESA compatible
- Triple stud mounting for added security
- Horizontal slide helps center the TV on the wall
- Post-installation leveling compensates for uneven ceilings
- Unique all steel click-in-place easy install and removal feature
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
| TV size range | 70" – 90" |
|---|---|
| Weight capacity | 300lb (136kg) |
| Max mounting pattern | 1096x601mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm |
| Post-Installation Leveling | +-5º |
| Depth from wall | 1.4" (0.4mm) |
| Lateral adjustment | varies with screen |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT6) |
| Stud spacing | dual stud 16", 20", 24" on center, triple stud 16" on center |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 12lb (5.4kg) |
| Package specifications | 35.5"x10.2"x3.2" |
| Color | black and silver |
| Warranty | 10-years |
