The RU-AFC2 is a stereo bi-directional audio format converter. The bi-directional format allows the RU-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. It can equally convert the stereo input and stereo output of a professional audio product to consumer unbalanced standards. The audio fidelity, low noise, low distortion and excellent crosstalk performance of the RU-AFC2 are ideally suited to the most critical applications. The RU-AFC2 has been carefully engineered in meticulous detail to provide the ultimate audio interface package available.

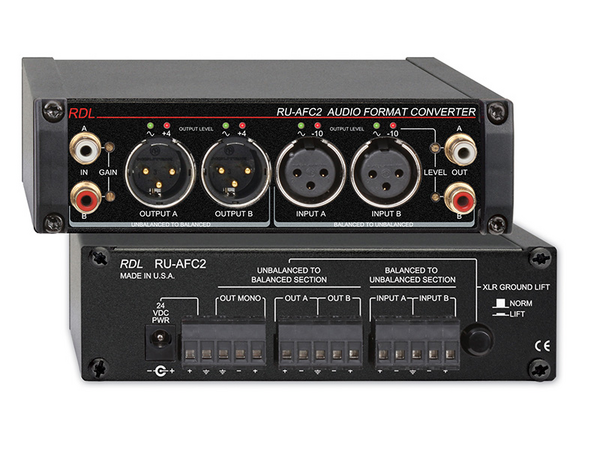

Unbalanced audio connections are available on front-panel RCA jacks. Balanced audio connections are available on front-panel XLR jacks and on rear-panel detachable terminal blocks. The shield connections of the XLR output jacks are connected to the case through a rear-panel ground-lift switch. The unbalanced to balanced section includes an additional MONO summed output on a rear-panel detachable terminal block which may be wired balanced or unbalanced. The mono output may be used to drive patch-bay jacks, powered monitors or subwoofer amplifiers.
Each of the left and right outputs is equipped with a dual-LED VU-meter. The intensity of the green LED is proportional to the audio level. The red LED flashes at the calibrated output level, -10 dBV unbalanced or +4 dBu balanced. An individual multi turn level trimmer is provided on the front panel for each output channel.
The RU-AFC2 operates from ground-referenced 24 Vdc. Use the RU-AFC2 individually, or combine it with other RDL products as part of a complete audio/video system.
Features:
- Unparalleled Audio Performance
- Unbalanced to Balanced Audio Conversion
- Additional Summed MONO Out
- Switch-Selectable Ground Lift for XLR Output Jacks
- Balanced to Unbalanced Audio Conversion
- Unbalanced RCA Connections on Front Panel
- Balanced XLR Connections on Front Panel
- Balanced Connections on Rear Panel Detachable Terminal Blocks
- Front-Panel Multi-Turn LEVEL Trimmers
- Dual-LED VU Meter for Each Channel
- Gold-Plated Connectors
- Exceptional Headroom and Frequency Response
- 1/3 Rack, High Density Rack Mounting
| Unbal to Bal Section | (Referred to ‑10 dBV input feeding +4 dBu) |
|---|---|
| Inputs (2) | Unbalanced line‑level, +25 dBV max. |
| Input Connectors (2) | RCA Phono jack (left and right) |
| Outputs (3) | +4 dBu balanced (left, right, mono sum), +25 dBu max. |
| Output Connectors (4) | XLR (2) and/or detachable terminal block (left and right) detachable terminal block (mono sum) |
| Gain adjustment | -25 dB to +9 dB (rel. +4 dBu) |
| Frequency Response | 10 Hz to 150 kHz (+/‑ 0.25 dB) |
| THD+N | < 0.005% |
| Noise | < ‑90 dB (below +4 dBu) |
| Crosstalk | < ‑80 dB (20 Hz to 20 kHz) |
| Headroom | > 20 dB |
| Bal to Unbal Section | (Referred to +4 dBu input feeding ‑10 dBV) |
| Inputs (2) | Balanced line‑level, +25 dBu max. |
| Input Connectors (3) | XLR (2) or detachable terminal block (left and right) |
| Outputs (2) | -10 dBV unbalanced (left and right), +17 dBV max. |
| Output Connectors (2) | RCA Phono jack (left and right) |
| Level adjustment | ‑28 dB to +5 dB (rel. -10 dBV) |
| CMRR | > 80 dB (50 to 120 Hz) |
| Frequency Response | 10 Hz to 150 kHz (+/‑ 0.25 dB) |
| THD+N | < 0.001% |
| Noise | < ‑100 dB (below ‑10 dBV) |
| Crosstalk | < ‑90 dB (10 Hz to 20 kHz) |
| Headroom | > 20 dB |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND‑REFERENCED, 24 Vdc @ 60 mA (idle), 100 mA (max) |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 1.285 lbs. |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.53 lbs. |
