RU-MX5ML | 5 INPUT MIC/LINE MIXER W/PHANTOM - MIC AND LINE OUT
RU-MX5ML
5 INPUT MIC/LINE MIXER W/PHANTOM - MIC AND LINE OUT
RU-MX5ML
5 INPUT MIC/LINE MIXER W/PHANTOM - MIC AND LINE OUT
- UM : EA

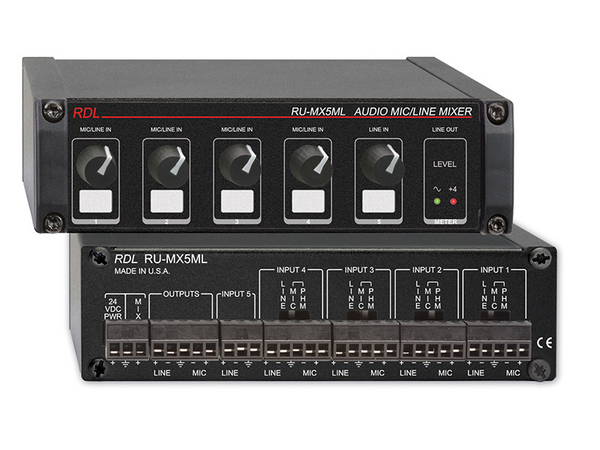

The RU-MX5ML is the ideal choice in many applications where a combination of balanced mic and/or balanced or unbalanced line-level signals needs to be mixed with the ability for additional expansion. All connections are made using detachable terminal blocks on the rear panel. Four of the RU-MX5ML inputs can accept either mic or line inputs. The fifth input is for line level sources.
24 V phantom is individually switch selectable for each mic input. The output from one RU-MX5ML may connect to the MIX input of another RU-MX5ML to expand mixing capabilities. The output section provides both a balanced line (+4 dBu) and balanced microphone level (-45 dBu) output. Both outputs may be used at the same time. Audio levels are adjustable on the front panel. The output is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics.
Features:
- Mic or Line Level Audio Mixer
- Five Channel Audio Mixer with Expansion Capability
- Inputs and Outputs on Detachable Terminal Blocks
- Switchable 24 V Phantom for Each Mic Input
- Balanced Mic and Line Outputs
- Expansion Bussing Capability
- Output Level dual-LED VU Metering
- Studio-Quality, Low-Noise Performance
| Inputs (6) | 4 selectable mic or line level 1 line level 1 direct MIX detachable terminal block |
|---|---|
| Input Impedance | Mic: >1.2 kΩ balanced Line: >10 kΩ balanced |
| Maximum Input Level | Mic: -20 dBu Line: +24 dBu |
| Phantom | Switch-selectable 24 V (IEC 61938: 2013) |
| Gain | Mic: Off to 65 dB Line: Off to 15 dB |
| Outputs (2) | Mic: -45 dBu balanced Line: +4 dBu balanced detachable terminal block |
| Output Impedance | 150 Ω balanced |
| Frequency Response | Mic: 80 Hz to 40 kHz (±1 dB, < -6 dB at 20 Hz with integral high-pass filter) Line: 10 Hz to 35 kHz (± 0.5 dB) |
| THD+N | Mic: < 0.03% Line: <0.003% |
| Headroom | 20 dB (above +4 dBu output) |
| Noise | < -70 dB below +4 dBu output (20 Hz to 20 kHz, all mic channels at 50 dB gain or one mic channel powered at 60 dB gain) < -90 dB below +4 dBu (20 Hz to 20 kHz, all channels off) |
| CMRR | Mic: > -65 dB (10 Hz to 10 kHz) Line: > -45 dB |
| Metering | Dual-LED VU Meter (calibrated to +4 dBu) |
| Dimensions | Height: 1.7 in. 4.3 cm Width: 5.8 in. 15.0 cm Depth: 4.8 in. 12.2 cm |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA (120 mA max. including phantom) detachable terminal block |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 1.13 lbs. |
| Shipping Weight | 1.385 lbs. |
| Package Dimensions | 6 x 6 x 2.625 in. |
