The RU-NFD modules are Dante audio network interface products compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.
APPLICATION: The RU-NFD is an RDL Format-A sender/distributor that connects to a Dante-enabled network. It converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

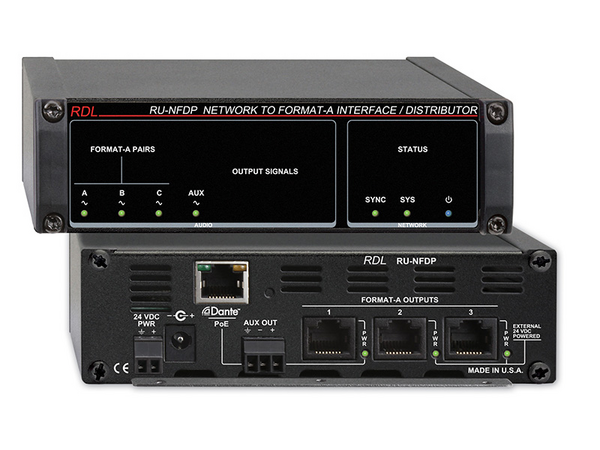

One front-panel green signal LED corresponds to each of the four Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module’s location.
The Format-A output is distributed to three separate rear-panel RJ45 jacks. Each Format-A output jack provides up to 200 mA of power to connected Format-A receivers. Multiple receivers may be daisy chained from one output jack, or may be connected by home run to each of the three outputs. Higher current Format-A receivers, such as RDL D-PSP1A powered Decora-style speakers, are to be individually connected to a separate output jack.
The RU-NFD output jacks support the entire range of Format-A receivers, making each output pair available for end-user connection on various wall plates, or feeding other equipment using rack-mounted, shelf-mounted or utility Format-A receivers. The wide array of Format-A receivers provide compatibility with commercial audio equipment operating at standard professional levels. High resolution digital audio converters coupled with RDL’s renowned analog filters provide superior fidelity with a very low noise floor. Each Format-A receiver may be connected near the RU-NFD or up to several thousand feet distant.
The RU-NFD is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-NFD and Format-A receivers connected to all three Format-A outputs. The RU-NFDP is equipped for PoE which powers the RU-NFD and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-NFDP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-NFDP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.
PoE relies on the use of a PoE enabled network switch. The RU-NFDP will reserve power from the switch even while being powered from an external 24 Vdc supply.
The RU-NFD is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations.
Features:
- Converts Four Dante Network Audio Signals to RDL Format-A and Aux
- Easy Installation with Format-A Connections on RJ45 through CATx Cable
- Three Dante Audio Signals Feed Format-A Output Pairs A, B and C
- Fourth Dante Audio Signal Feeds Auxiliary Balanced +4 dBu Line Output
- Format-A Pairs are Distributed to Three Separate Format-A Output Jacks
- Signal LEDs Indicate Audio for Each of the Four Received Network Signal Channels
- High Resolution 24 Bit Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
- Powers Remote Format-A Receivers through Primary Output Jack
- External 24 Vdc Supply Powers Format-A Receivers through All Output Jacks
- LED Indicators Show Network Sync Status
- Outputs Mute when Digital Audio Inputs are Inactive
- Normal or Hot-Standby Operation from PoE (Model RU-NFDP)
- Compatible with Wide Array of RDL Format-A Active and Passive Receivers
- Equipped for Rack Mounting or Surface Mounting
| Network Connector | RJ45 with Link and Speed indicators |
|---|---|
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default) |
| Bit Depth Supported | 24 bits |
| Audio Operating Levels | -18 dBFS = +4 dBu |
| Format-A Outputs | RDL Format-A RJ45 (3) |
| Format-A Signal Pairs Used (3) | A, B, C (each Format-A output) |
| Frequency Response | 20 Hz to 20 kHz (± 0.75 dB) |
| THD+N | < 0.1% |
| Noise below +4 dBu | < -85 dB (pair active) < -100 dB (pair muted) |
| Crosstalk | < 80 dB (20 Hz to 20 kHz) |
| Headroom above +4 dBu | > 18 dB |
| AUX Output | |
| Output | Balanced, detachable terminal block |
| Output Level | +4 dBu (nominal) |
| Output Impedance | 150 Ω balanced 75 Ω unbalanced |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.1% |
| Noise below +4 dBu | < -75 dB |
| Crosstalk | < 80 dB (20 Hz to 20 kHz) |
| Headroom above +4 dBu | > 18 dB |
| Indicators (12) | Power In (1) Power Out (3) Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2) |
| Power Connections (2) | Power Jack Detachable Terminal Block |
| Ambient Operating Environment | 0° C to 40° C |
| Power Requirement | 24 Vdc @ 120 mA plus connected loads, or PoE (RU-FNP) |
| PoE (RU-NFDP) | Class 0, IEEE 802.3af |
| Dimensions | 5.8" (15 cm) W 1.7" (4.3 cm) H 5.2" (13.2 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.63 lbs. (RU-NFD) 1.63 (RU-NFDP) |
| WEEE weight | 1.37lbs. (RU-NFD) 1.37 (RU-NFDP) |
| Tariff code | 8543.70.9100 |
