RU-SC2 | RS-232/422 SERIAL CONVERTER (FULL-DUPLEX)
RU-SC2
RS-232/422 SERIAL CONVERTER (FULL-DUPLEX)
RU-SC2
RS-232/422 SERIAL CONVERTER (FULL-DUPLEX)
- UM : EA

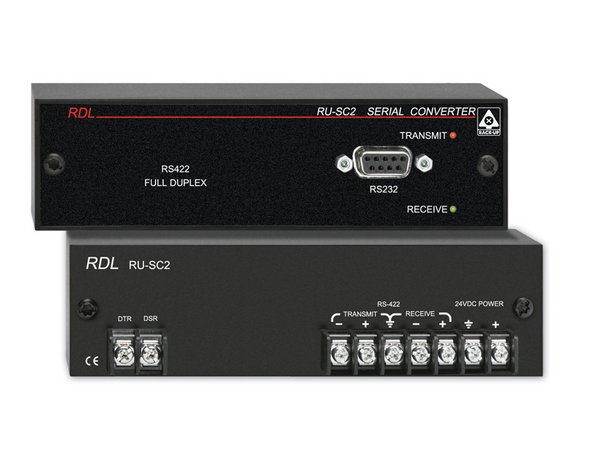

The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.
Features:
- Conversion RS-232 ⇔ RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
| Control Input / Output | RS-232 (DB-9 female jack) |
|---|---|
| Control Outputs (8) | Open-collector, 50 mA |
| Status Inputs (8) | Low = powered (internally pulled high to 5 V) MAX input 24 Vdc |
| 0 to 10 VDC Outputs (8) | 22 Ω ground-referenced, 20 mA, 256 steps |
| Ramp Rate 0 to 10 V Outputs | 0.5 to 120 seconds (for full scale change) individually programmable |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 200 mA |
| Mounting | Mounts in 2 bays of RU-RA3 Rack Adapter or operates Free-standing |
| Dimensions | Height: 1.75 in 4.40 cm Depth: 3.98 in 10.10 cm Width: 11.60 in 29.50 cm |
| Package Type | Cardboard Box |
| WEEE weight | 2.575 lbs. |
| Shipping Weight | 3.105 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 12 x 8 x 2.75 in. |
