RU-SM16D | 4 CHANNEL AUDIO METER - AVERAGE/PEAK/HOLD
RU-SM16D
4 CHANNEL AUDIO METER - AVERAGE/PEAK/HOLD
RU-SM16D
4 CHANNEL AUDIO METER - AVERAGE/PEAK/HOLD
- UM : EA

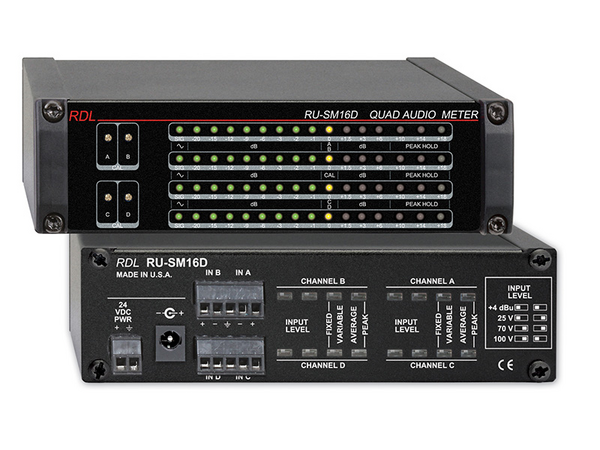

The RU-SM16D is the ideal choice in most applications where the metering of multiple audio levels is to be designed into a system or added to existing equipment. The RU-SM16D has four separate inputs. Each input may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line or constant voltage speaker lines (25 V, 70 V or 100 V). All connections are made using detachable terminal blocks.
A rear-panel switch selects variable or fixed calibration for 25V, 70V, 100V and +4 dBu sources. In the "variable" position, front-panel multi-turn trimmers adjust the calibrated meter levels.
Rear-panel switches allow the installer to set each meter individually for either peak or average audio level display. In monaural installations, it may be advantageous to feed the mono source to two meters, setting one for peak and the other for average. In either mode the upper three LEDs (+10, +14, +18) remain in the PEAK HOLD mode. In stereo applications, each channel, left and right, can display both peak and average values. Each of the four meters in the RU-SM16D may be operated separately to monitor four different sources.
The RU-SM16D uses bright LEDs for good visibility. Each input has a label area for identification of the source or function being metered.
Features:
- Precision Audio Level Metering
- Digital 16 LED String Display Indication
- Four Mono Meters or Dual Stereo Metering
- Line-Level, Speaker-Level or 25/70/100 V Audio Input
- Selectable Fixed or Variable Calibration
- Individual Channel Calibration Controls
- Selectable Peak or Average Metering
- Peak-Hold Display for +10, +14, +18 dB
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 450 mA |
|---|---|
| Inputs (4) | Line level or Amplified speaker level |
| Input Impedance | > 40 kΩ balanced or unbalanced |
| 0 dB Calibration | Fixed or Variable (switch-selectable) |
| Fixed Input Level | +4 dBu (+4 switch settings, for 0 dB reading)25 V* (25 V switch settings, for 0 dB reading)70 V* (70 V switch settings, for 0 dB reading) 100 V* (100 V switch settings, for 0 dB reading)*Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output |
| Variable Input Level Range | -24 dBu to +12 dBu (+4 switch settings, for 0 dB reading) 2 V to 90 V* (25 V switch settings, for 0 dB reading)4 V to 90 V* (70 V switch settings, for 0 dB reading) 5 V to 100 V* (100 V switch settings, for 0 dB reading) *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output |
| Metering Freq. Response | 20 Hz to 20 kHz |
| Indicators | 16 LEDs per channel: SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18(+10, +14, +18 are PEAK HOLD indicators only) |
| Metering Response | Each channel individually selectable PEAK or AVG (switch-selectable) |
| Rise Time (10% to 90%) | Rise Time (0% to 100%): Fall Time (90% to 10%): Fall Time (100% to 0%): Peak Mode Average Mode50 us 130 ms60 us 300 ms (VU Characteristic)65 ms 185 ms100 ms 300 ms (VU Characteristic) |
| Ambient Operating Environment | 0° C to 55° C |
| Package Type | Cardboard Box |
| Tariff code | 9030.33.3800 |
| WEEE weight | 1.09 lbs. |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.325 lbs. |
