RU-VA2 | DUAL ADJUSTABLE VIDEO ATTENUATOR - BNC
RU-VA2
DUAL ADJUSTABLE VIDEO ATTENUATOR - BNC
RU-VA2
DUAL ADJUSTABLE VIDEO ATTENUATOR - BNC
- UM : EA

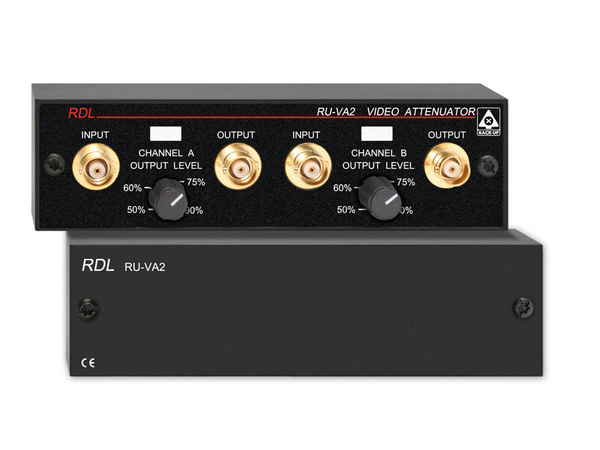

The RU-VA2 is the optimum choice where connectorized, rack-mounted video attenuation is needed. This unit features two separate, passive isolated channels. A single input jack is provided for each attenuator. The output jack is intended to be connected to a 75 Ω terminated load. A front-panel knob is provided to adjust hot video levels down to the normal 1 volt p-p signal level. A single attenuator is capable of adjusting down the video level to half the incoming signal level.
In situations where excessive video levels may cause input overload artifacts, the RU-VA2 is easily connected to the circuit and adjusted for proper video levels. With the high density 1/3 rack width of the RACK-UP® series, an RU-VA2 can be conveniently added to a rack so it is available when needed.
Features:
- Video Attenuation
- Two Channels
- Front-Panel Level Adjustment
- Stand Alone or Rack-Mountable
- 75 Ω Attenuators
- 1/3 Rack, High-Density Rack Mounting
| Power Requirements | Unit is passive (not required) |
|---|---|
| Ambient Operating Environment | -20° C to 60° C |
| Mounting | Rack-mount using optional RU-RA3 triple rack mount or RC-1U rack chassis. Bottom mount using available adhesive strips bottom or top mount to a flat surface using optional MB-2 mounting bracket set front mount to a panel or backboard using optional MB-1 mounting set. Mount to cabinet using RU-BR1. |
| Dimensions | Height: 1.7 in. 4.3 cm Length 5.8 in. 15.0 cm Depth: 2.0 in. 5.1 cm (case only) Depth: 2.5 in. 6.4 cm (including barrier block) |
| Package Type | Cardboard Box |
| WEEE weight | 1.05 lbs. |
| Shipping Weight | 1.28 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
