RU-VCA2A | 2CH DIGITAL AUDIO ATTENUATOR, LOCAL/REMOTE LEVEL CONTROL, 96DB RANGE
RU-VCA2A
2CH DIGITAL AUDIO ATTENUATOR, LOCAL/REMOTE LEVEL CONTROL, 96DB RANGE
RU-VCA2A
2CH DIGITAL AUDIO ATTENUATOR, LOCAL/REMOTE LEVEL CONTROL, 96DB RANGE
- UM : EA
- Estimated Weight: 2.0

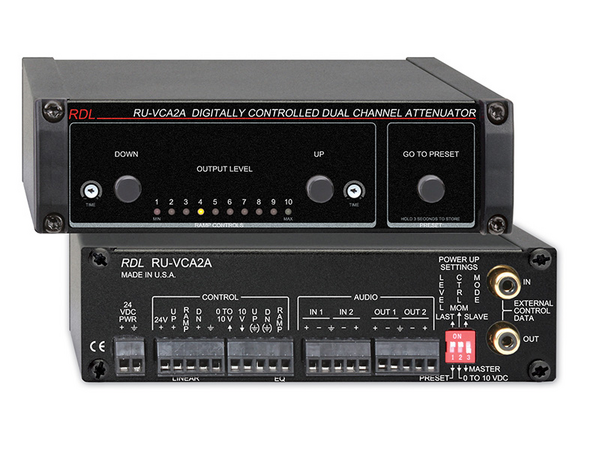

RDL RU-VCA2A is a dual-channel digitally controlled audio attenuator for precise local or remote level adjustment of balanced or unbalanced line-level sources. It can operate as a linked stereo controller or provide mono attenuation in professional audio, broadcast, control-room, presentation, and commercial AV systems.
The RU-VCA2A provides a 96 dB attenuation range in precise 0.5 dB steps using noiseless zero-crossing adjustment. Control options include front-panel or external pushbuttons, momentary pulses, rotary encoders, 0 to 10Vdc control, and a remote 10k potentiometer. Preset or last-used power-up levels, adjustable ramp times, and master/slave operation support both standalone use and expanded multi-module systems.
Features:
- Local or Remote Audio Level Control
- Mono or Stereo Attenuation
- Noiseless Zero-Crossing Adjustment Steps
- 96 dB Attenuation Range in 0.5 dB Steps
- Data Bus Provides Adjustment of Multiple Modules
- Multiple Remote Control Locations Possible
- Precise Level Tracking on Each Channel
- Balanced or Unbalanced Line Inputs/Outputs
- Adjustable Ramp Up/Down Rates
- Controllable Using Various RDL Remote Controls
- Selectable Level Control Options: Pushbuttons (Internal or External) Momentary Pulses (External/Rotary Encoder) 0 to10 Vdc or 10 kO Potentiometer
- Selectable Power-Up Return to PRESET or LAST Level
- Selectable MASTER/SLAVE Mode for Control Expansion
| Inputs (2) | >10 kO Balanced bridging, or Unbalanced, line level |
|---|---|
| Frequency Response | 10 Hz to 50 kHz (± 0.5 dB) |
| THD+N | < 0.005% (20 Hz to 20 kHz) |
| Gain | Adjustable from unity to <–96 dB |
| Step Size | 0.5 dB |
| Headroom | > 18 dB (above +4 dBu) |
| Residual Noise | < -90 dB (referred to +4 dBu at unity gain) |
| CMRR | > 65 dB (50 to 150 Hz) |
| Crosstalk | <-95 dB (1 kHz, typ.) < -85 dB (20 Hz to 5 kHz) < -75 dB (5 kHz to 20 kHz) |
| Ramp Times | 0.5 second delay then: 3 seconds to 10 seconds(UP and DOWN times individually adjustable on front panel) |
| Indicators (10) | Front-panel LEDs indicating relative audio level (8), MAX condition (green), MIN condition (red) |
| Audio Outputs (2) | 150 O balanced (may be connected unbalanced) |
| Ramp Output | 0 to 10 Vdc, (Ground-referenced) Note: Not intended to drive additional VCA 0-10V inputs |
| EQ Ramp Output | 0 to 10 Vdc, (Ground-referenced) Note: dc taper intended only to drive RDL Loudness EQ (ST-LEQ1) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | 24 Vdc @ 120 mA, Ground-referenced |
| Case Dimensions | 5.75" (14.6 cm) W x 1.65" (4.18 cm) H x 3.54" (9.0 cm) D 3.9" (9.9 cm) D with connectors |
| Package Type | Cardboard Box |
| Package Dimensions | 6 x 6 x 2.625 in. |
| Shipping Weight | 1.335 lbs. |
| WEEE Weight | 1.09 lbs |
| Tariff Code | 8543.70.9860 |
