RU-VDA4B | NTSC/PAL VIDEO DISTRIBUTION AMP - 1X4 - BNC
RU-VDA4B
NTSC/PAL VIDEO DISTRIBUTION AMP - 1X4 - BNC
RU-VDA4B
NTSC/PAL VIDEO DISTRIBUTION AMP - 1X4 - BNC
- UM : EA

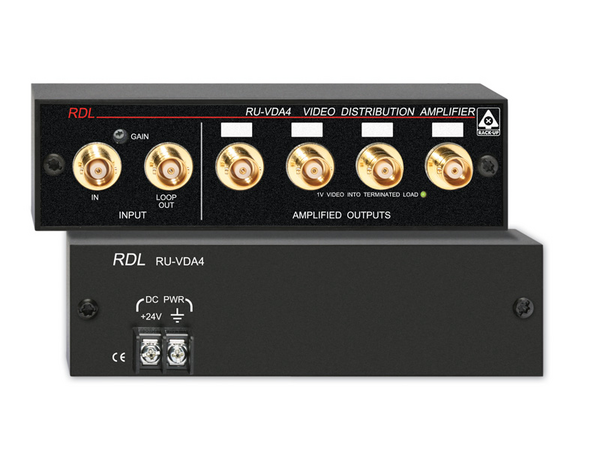

The RU-VDA4B is the ideal choice in most applications where video signals need to be distributed. Video inputs and outputs are made on the front panel via BNC, PHONO, or type F jacks. Power connections are made using full-size barrier block terminals on the rear panel.
The RU-VDA4B has two jacks in the input stage. One jack is for the input signal; the other is a loop through output of the source signal. The input stage is bridging. If 75 Ω termination of the input signal is required, the termination is plugged onto the LOOP OUT jack.
Gain is user adjustable from the front panel. The GAIN potentiometer allows adjustment from -1 dB to +7 dB.
Features:
- Video Distribution with 4 Outputs
- Adjustable Gain Amplification
- Input LOOP OUT Jack
- Video 1 Volt Signal Indicator
- 10 MHz Bandwidth, NTSC or PAL
- 1/3-Rack, High-Density Rack Mounting
| Dimensions | Height: 1.7 in (4.3 cm), Width: 5.8 in (15.0 cm), Depth: 3.0 in (7.7 cm) |
|---|---|
| Input | 1 kΩ bridging 75 Ω line |
| Gain | -1 dB to +7 dB (0.9 to 2.25 V p-p, adjustable) |
| Outputs | 1 LOOP OUT from input signal 4 amplified outputs |
| Output Level | 1 V p-p into 75 Ω |
| Frequency Response | 10 Hz to 10 MHz (± 0.2 dB) |
| Noise | < -70 dB below (1 V p-p) |
| Output Isolation | > 40 dB |
| Differential Gain | 0.1% |
| Differential Phase | 0.1 degree (measured at 10% and 90 APL) |
| Connector Type | BNC, PHONO, or Type F |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 60 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.665 lbs. |
| Shipping Weight | 0.93 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
