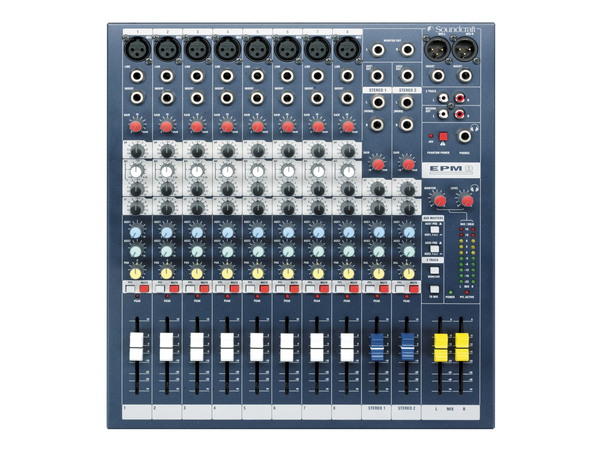

RW5735US | EPM8 MIXER - 8 MONO INPUT CHANNEL FRAME SIZE WITH TWO STEREO INPUTS

RW5735US
EPM8 MIXER - 8 MONO INPUT CHANNEL FRAME SIZE WITH TWO STEREO INPUTS

The Soundcraft EPM8 is an 8+2 channel analog mixer designed for small live sound, recording, and install applications that demand reliable audio performance with intuitive control. Featuring eight premium GB30 mic preamps—derived from Soundcraft’s high-end consoles—the EPM8 offers transparent audio quality with up to 55 dB of gain and +22 dB headroom. Each mono input includes a 3-band EQ with sweepable midrange, while the stereo channels feature a 2-band EQ. Two configurable aux sends per channel allow for monitor or FX routing, and the mixer includes inserts on all mono inputs and the main mix. The EPM8 also offers 60mm faders, peak signal LEDs, 10-segment LED metering, and RCA stereo playback and record connectivity. With a built-in universal power supply and rugged metal chassis, the EPM8 is ideal for AV integrators, small venues, houses of worship, and portable rigs.

FEATURES

•  2 configurable auxiliary buses
•  XLR-type and ¼” metal jack connector sockets
•  RCA phono stereo playback inputs and record outputs
•  3-band EQ with a swept mid on mono inputs
•  2-band EQ on stereo inputs
•  TRS insert sockets and inserts on all mono inputs and mix output
•  Ten-segment LED output metering
•  Intuitive and comprehensive solo system
•  Headphone output
•  Easily rack mountable (rack mount kit sold separately)
