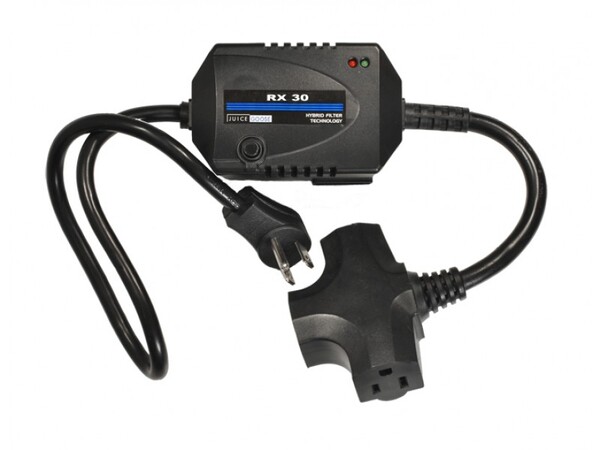

RX30 | 10A, 3 OUTLET, INLINE AC SURGE AND NOISE FILTER

RX30
10A, 3 OUTLET, INLINE AC SURGE AND NOISE FILTER

The Juice Goose RX 30 Filtercord features the Juice Goose Hybrid Filter Technology to improve performance of electronic components and protect against dangerous power line surges on the hot, neutral and ground power leads.

Additional features include:

• 10 Amp Capacity
• Maximum Hot - Neutral Surge of 10 Volts
• Maximum Ground Surge of 0.50 Volts
• High Frequency Normal and Common Mode Noise Filtration
• Over Voltage Shutdown
• Protection Against External Wiring Faults
• Three power receptacles

Juice Goose RX Series technology reduces ground line (common mode) surges to a maximum of 0.50 (on half) volt. While ground line surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment.

The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps on between hot and neutral. The RX Series circuitry allows a maximum 10.0 volt normal mode surge.

The RX Series uses a Hybrid Filter Technology that will not contaminate the ground. Instead, it cleans it up.

RX 30 FEATURES

The Juice Goose RX 30 has three NEMA 5-15R receptacles to connect and protect multiple components in a small space.  The 3 foot long power source cable is fit with a convenient right angle plug to lie flat against a wall.  This design allows for better filter module placement and connection with hard to reach AC outlets.
