SAB673 | SABER SPOT RGBL - 20W RGBL LED PIN SPOT, 5.7 DEG BEAM, BUILT-IN COLOR MACROS, DMX & RDM COMPLIANT

SAB673
SABER SPOT RGBL - 20W RGBL LED PIN SPOT, 5.7 DEG BEAM, BUILT-IN COLOR MACROS, DMX & RDM COMPLIANT

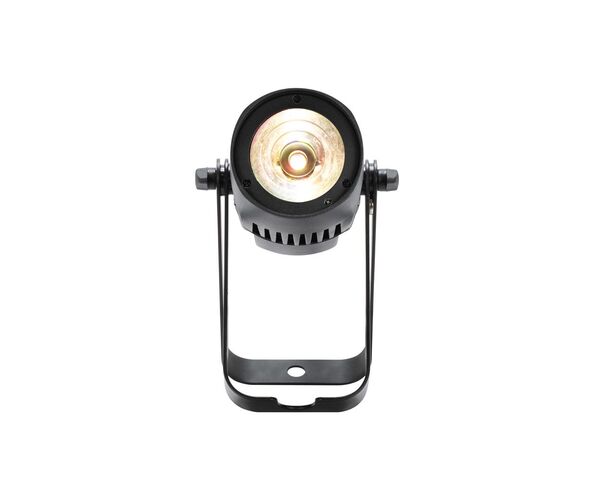

The ADJ Saber Spot RGBL is ADJ Lighting next generation LED pinspot with a 20-Watt RGBL LED source, ACL lens for a tight 5.7-degree beam, is DMX and RDM complaint and features bullt-in color macros, color changing programs and has white color temperature presets ranging from 2700K to 7000K.

Optical:

• Light Source: 20-Watt, RGBL LED

• LED Life Expectancy: 30,000 Hrs

• Beam Angle: 5.7°

• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)

• LED Refresh Rate: 3.6KHz

Technical Features:

• DMX and RDM Compliant

• 6 White Color Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K

• 63 Built-in Color Macros

• 13 Built-in Color Changing Programs

• 4-button Digital Display for easy navigation

• Electronic Dimming 0 – 100%

• Includes a scissor yoke to be hung, or set on the ground

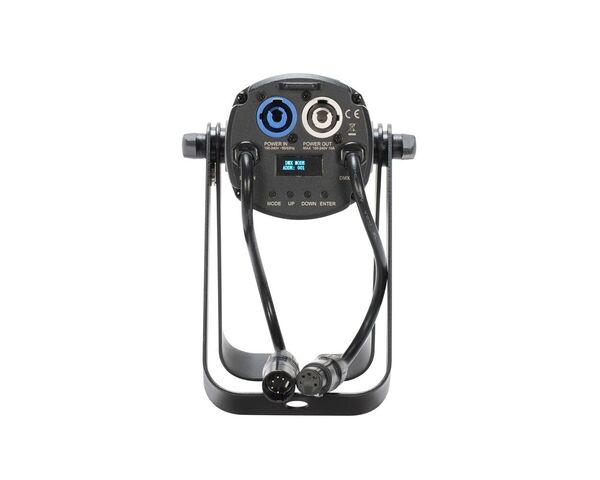

Connections:

• Power Input: Indoor power locking

• Power Pass through: Indoor power locking

• Control: 5-pin DMX In/Out pigtails

• With Wired Digital Communication Network

Control:

• 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL

• RDM Compliant

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw 120V 60Hz: 16.7W, 0.243 Amps

• Power draw 230V 50Hz: 16.7W, 0.147 Amps

• Power Output Current: 1.2A (14W)

• Power Linking: 57pcs @120V, 95pcs @230V

Physical:

• Dimensions (LxWxH): 6.69” x 5.31” x 8.46" (170 x 135 x 215mm)

• Weight: 3.2 lbs / 1.45 kg.

• Black Housing

Certifications & Ratings:

• CE

• cETLus Approved (Control # 4010765)

• IP20

What’s Included:

• 1.83m Indoor locking power cord

• 2 frost filter lens (10-degree & 45-degree)

• Metal clip ring for frost filter lens

Optional Accessories:

• PLC 3, PLC 6, PLC 10 (Indoor locking power link cables)
