SAS-8C | 8 STATION AUDIO CONTROLLER

  • MAP: $1,249.97 / EA
  • List Price: $1,666.62 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
8 STATION AUDIO CONTROLLER

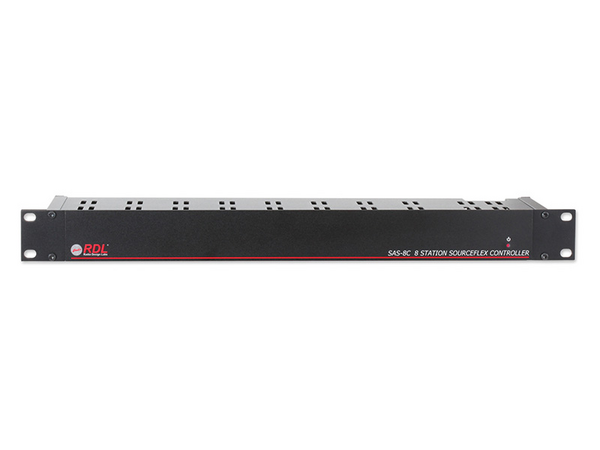

Click image to enlarge

SAS-8C
8 STATION AUDIO CONTROLLER

  • UM : EA

SAS-8c 8 Station Audio Controller controls eight SourceFlex remote listening station. Six conductor wire connects each remote station with the SAS-8C. The power conductor is protected by an automatically resetting fuse. Use of the SAS-8C in large SourceFlex systems yields the most economical cost per station.

Features:

  • Controls 8 SourceFlex listening stations
  • Provision to set maximum listening level at each station
  • Auto-resetting fuse protects power feed to each listening station
  • Daisy-chain connections to/from SAS-82 and/or SAS-8i
Audio Input, paging 100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Inputs, switched (8) 100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Input Level -22 dBu to +4 dBu nominal (+22 dBu max.), 25-turn adjustable pot
Control Input Paging Terminal
External closure to ground to activate
Front Panel Presets DIP switch to set number of inputs used
Metering 1 Green LED (intensity indicates audio level)
1 Red LED (indicates 0 dB audio level)
Frequency Response 50 Hz to 35 kHz (±1 dB)
THD+N < 0.1% @ 1 KHz (bandwidth 20 Hz to 20 kHz)
Output, bus 24-pin ribbon cable header loop-thru output to drive SAS-82 or SAS-8C
Outputs (4) 6-position detachable terminal blocks (connection to remote Listening Station)
Audio Output Gain Range 40 dB (trimmer presettable)
Indicators LED
Output voltage present at Remote Outputs
Power Requirement 24 Vdc @ 1 A, Ground-referenced
Ambient Operating Environment 0° C to 50° C
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 3.615 lbs.
Shipping Weight 4.185 lbs.
Package Dimensions 20.5 x 6.75 x 2.25 in.
