SAS-HC8 | HEADPHONE CONTROL STATION
SAS-HC8
HEADPHONE CONTROL STATION
SAS-HC8
HEADPHONE CONTROL STATION
- UM : EA

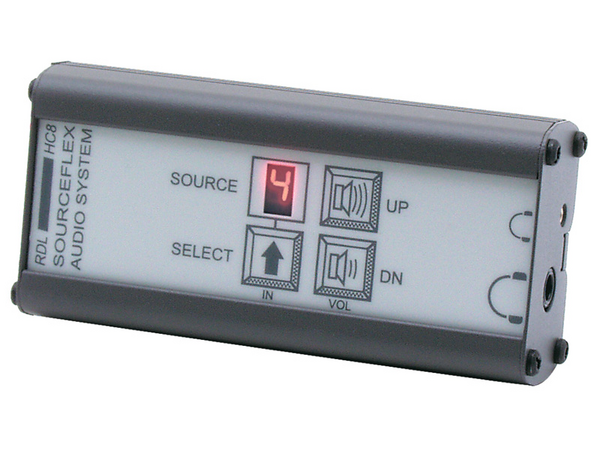

The SAS-HC8 Headphone Control Station is a SourceFlex headphone listening station for use with exercise equipment or on a tabletop. Each unit features a source selector with numeric indicator and volume adjustment buttons. Sealed touch controls protect the internal circuitry from debris and moisture. The rugged metal case is both attractive and durable. If headphones are left unplugged from the SAS-HC8, the internal processor resets the volume to a safe listening level. This averts the possibility of a loud, potentially harmful audio burst when headphones are plugged in.
Features:
- Headphone listening station for exercise equipment or countertop
- Source selection and volume adjustment buttons
- Sealed touch controls protect internal circuitry
- ULTRASTYLEdesign rugged metal enclosure
- Mounts to support pipe, handlebar or tabletop
- Automatic volume reduction to safe level when headphones left disconnected
| Display | 7-segment red LED (0 = off or Paging 1 through 8 = selected channel) |
|---|---|
| Input | 6-position detachable terminal block |
| Control Buttons | Replaceable, protected by moisture-resistant polycarbonate |
| Control functions | Momentary button channel SELECT Momentary button volume ramp UP Momentary button volume ramp DOWN |
| Ramp Rate | 5 seconds nominal for 40 dB audio level adjustment |
| Frequency Response | 50 Hz to 35 kHz (±1 dB) |
| THD+N | < 0.1% (20 Hz to 20 kHz) @ 1 kHz |
| Control Signals | dc (RAMP and CONTROL conductors between remote Listening Station and Controller) |
| Output Jacks (2) | 1/4 in. (6.35 mm) headphone jack or 1/8 in. (mini) headphone jack |
| Amplified Output | 200 mW RMS into 100 Ω, adjustable (normal system audio input operating level applied) |
| Mounting | Bracket with clamps included, mounts to flat surface or to tubing 0.75 in. (1.9 cm) to 1.5 in. (3.8 cm) diameter |
| Finish | RDL ULTRASTYLE design |
| Ambient Operating Environment | 0° C to 55° C |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.765 lbs. |
| Shipping Weight | 1.455 lbs. |
| Package Dimensions | 2 x 2 x 4 in. |
