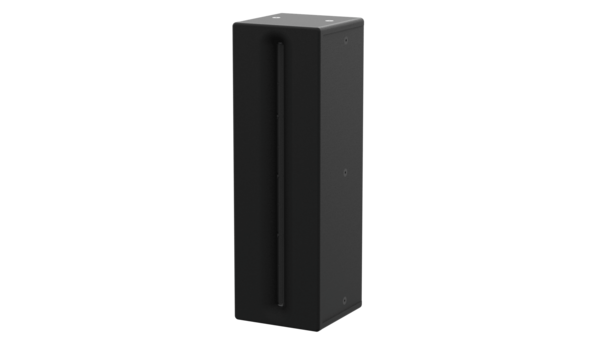

SBH20FF-C | 150 X 20 DEGREE, 4 X 5" NEODYMIUM COAXIAL DRIVERS, "COLUMN-LIKE" SPEAKER, CUSTOM COLOR
SBH20FF-C
150 X 20 DEGREE, 4 X 5" NEODYMIUM COAXIAL DRIVERS, "COLUMN-LIKE" SPEAKER, CUSTOM COLOR
SBH20FF-C
150 X 20 DEGREE, 4 X 5" NEODYMIUM COAXIAL DRIVERS, "COLUMN-LIKE" SPEAKER, CUSTOM COLOR
- UM : EA
The SBH20FF-C is a compact column loudspeaker incorporating four 5″/1″ coaxial drivers integrated with Danley’s patented Paraline lens technology. It delivers a 150° horizontal by 20° vertical dispersion pattern, functioning as a large horn with an effective acoustic path length exceeding 12 feet. The design provides controlled directivity with minimized spurious lobes without the need for complex signal processing.
The enclosure is constructed from 13-ply Baltic Birch, coated with a Polyurea finish for impact and environmental resistance. The SBH20FF-C includes M10 rigging points for installation. It features Sentinel high-frequency driver protection circuitry, a multistage limiter that safeguards against peak and long-term overloads while remaining inaudible during normal operation.
| Coverage Pattern | 150° horizontal x 20° vertical |
|---|---|
| Operating Frequency Range | 160 Hz – 14.6 kHz |
| Operating Mode | two-way single channel amplified |
| Transducers | 4x 5"/1" coaxial drivers |
| Power Handling | 760W continuous, 3040W peak |
| Sensitivity | 96 dB at 2.83V, 1 meter |
| Maximum SPL | 124 dB continuous, 130 dB peak |
| Impedance | 4ohm |
| Recommended Power Amplifier | 700-1500W |
| Connections | 2x Neutrik NL4, Pins 1 input, Pins 2 through |
