SCS8 | TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM

  • MAP: $940.00 / EA
  • List Price: $940.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM
TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM
Click image to enlarge
TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM
TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM

SCS8
TWO-WAY FULL RANGE CINEMA SURROUND SPEAKER IDEAL FOR MULTI CHANNEL SURROUND FORMATS FOR MEDIUM

  • UM : EA
  • Estimated Weight: 3.0

The SCS 8 is a coaxial-driver, 2-way, full-range cinema surround loudspeaker ideal for multi-channel surround formats and is designed for overhead installation as well as for standard on-wall installations

Features:

  • 250 Watt power handling (averagecontinuous pink noise) with highsensitivity provides high SPL capability.
  • Consistent 120° x 120° broadband pattern control
  • Extraordinary clarity cinema surroundwith extended frequency response forspecial effects
  • Components:

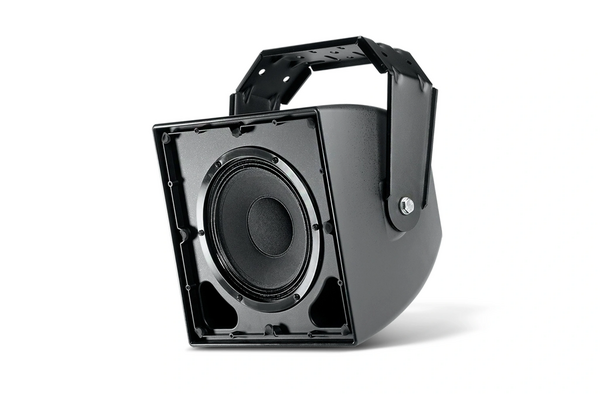

  • 200 mm (8 in) woofer with Kevlar-reinforcedcone and 50 mm (2 in)  voice coil.
  • 25 mm (1 in) exit compression driverwith unique patented design   and hightemperature polymer diaphragm.
  • 70 Hz – 20 kHz frequency response
  • High-power passive crossover network
  • Overload protection
Frequency Range (±3 dB) 90 Hz – 20 kHz
Frequency Range (-10dB) 70 Hz – 20 kHz
Coverage Pattern 120° x 120°
Directivity Factor (Q) 8.1 (1 k – 16 kHz)
Directivity Index (DI) 8.4 dB (1 k – 16 kHz)
Power Rating 250 W 2 hrs.200 W 100 hrs
Sensitivity 94 dB (Ave. 90 Hz – 20 kHz)
Maximum SPL (1m) 118dB
Crossover Network 2.1 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8Ω
LF Driver Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
HF Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluidcooling.
HF Driver Protection Minimum audibility SonicGuard HF overload protection
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich steel grille.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside openlug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs.
Dimensions 300 x 300 x 305 mm (11.8 x 11.8 x 12.0 in), cabinet 359 mm (14.2 in) including bracket extending to back
Colors Black
Net Weight (each) 8.2 kg (18 lb), 10.0 kg (22.0 lb) with U-Bracket
Shipping Weight 11.4 kg (25.0 lb)
Included Accessories U-bracket, steel.
Horizontal Coverage Angle (-6dB) 120°
Vertical Coverage Angle (-6dB) 120°
Power Handling (2Hr AES Rating) 250 W
