SDC12 | SDC12 , 12 CHANNEL BASIC DMX CONTROLLER

  • MAP: $119.99 / EA
  • List Price: $159.95 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 8
  • Sign In or Submit RFQ for accurate lead times

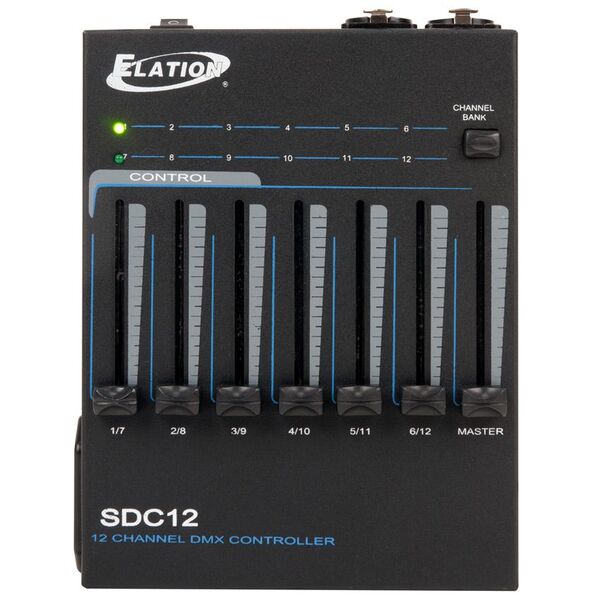

SDC12 , 12 CHANNEL BASIC DMX CONTROLLER
Click image to enlarge

SDC12
SDC12 , 12 CHANNEL BASIC DMX CONTROLLER

  • UM : EA
  • Estimated Weight: 3.0

The ADJ SDC12 features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3pin and 5pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).

FEATURES:

• 12 DMX Channels Faders

• Master Dimmer Fader

• Portable Handheld Or Wall Mountable

• Operates via 12VDC Power Supply (Included) Or

• 9VDC Battery (Not Included)


CONTROL / CONNECTIONS:

• DIP Switches To Set Starting DMX Channel

• 3pin & 5pin DMX Outputs

• On/Off Switch

• LED Channel Bank Indicator

• DC 12V Power Supply Input


SIZE / WEIGHT:

• Length: 7.5” (191mm)

• Width: 5.9” (149mm)

• Height: 1.6” (41mm)

• Weight: 2.0 lbs. (0.9kg)



ELECTRICAL:

• DC 12V 500mA min OR 9V Battery (Not Included)


APPROVALS / RATINGS:

• CE Approved

• RoHs Compliant


INCLUDED ACCESSORIES:

• 12V Power Supply
