SF-NH1 | NETWORK TO STEREO HEADPHONE AMPLIFIER - DANTE
SF-NH1
NETWORK TO STEREO HEADPHONE AMPLIFIER - DANTE
SF-NH1
NETWORK TO STEREO HEADPHONE AMPLIFIER - DANTE
- UM : EA
The SF-NH1 is a headphone amplifier that converts two Dante network audio channels to a stereo headphone output with front-panel level adjustment. The output connects through a stereo 3.5 mm Mini-jack. Each channel provides 100 mW into 100 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. The SF-NH1 is a professional grade product for studio quality fidelity and low noise performance.
The SF-NH1 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

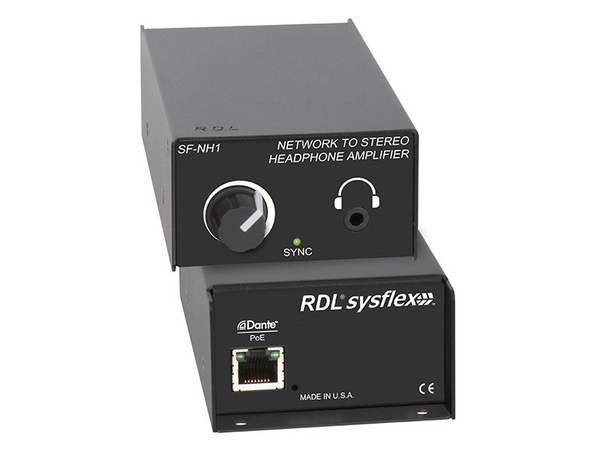

The SF-NH1 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.
Features:
- Converts Two Dante Network Audio Signals to a Stereo Headphone
- Output on Professional Quality 3.5 mm stereo Mini-Jack
- Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Front-Panel Output Level Control
- Special Software Not Required for Module Setup
- Exceptional Low-Noise and Low-Distortion Performance
- High Resolution 24 Bit Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
- LED Indicator for Valid Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af)
- Equipped for SysFlex Rack Mounting or Surface Mounting
| Network Connector | RJ45 with Link and Speed indicators |
|---|---|
| Digital Audio Ethernet Protocol | Dante |
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported | 24 bits |
| Reference Level | 0 dBFS = 150 mW into 100 Ω |
| Outputs (2) | Mini-jack Stereo (L and R) |
| Output Level (maximum) | 0 dBFS = 150 mW into 100 Ω |
| Output Impedance | < 50 Ω |
| Frequency Response | 20 Hz to 20 kHz (± 0.5 dB) |
| THD+N | < 0.05% (20 Hz to 20 kHz, -20 dBFS) 0.015% at 1 kHz (typ) |
| Noise | < -75 dB (below -20 dBFS) < -95 (below 0 dBFS) |
| Crosstalk | < -80 dB (1 kHz, -20 dBFS) |
| Headroom above -20 dBFS | 20 dB |
| Indicators (3) | Ethernet Link and Speed (2, rear panel) Sync (front panel) |
| Ambient Operating Environment | 0° C to 50° C |
| Power Requirement | PoE Class 0, IEEE 802.3af |
| Specification Conditions | Gain/Level: ± 1 dB |
| Dimensions | 2.79" (7.09 cm) W 1.68" (4.27 cm) H 5.77" (14.66 cm) D |
| Package Type | Cardboard Box |
| Package Dimensions | 7 x 4.375 x 2.25 in. |
| Shipping Weight | 1.09 lbs. |
| WEEE weight | 0.88 lbs. |
| Tariff code | 8543.70.9100 |
