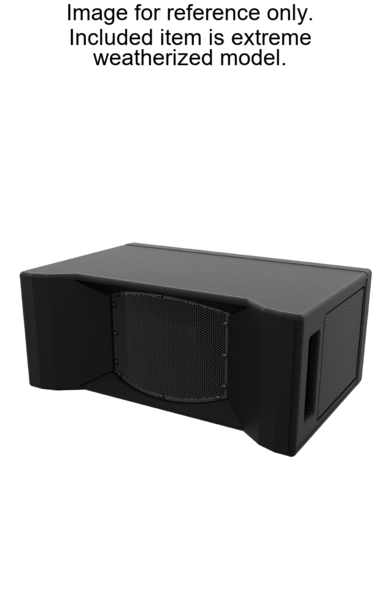

SH110-I-EW | 110 X 60 DEGREE SPEAKER, PASSIVE INSTALL EXTREME WEATHERIZED VERSION

The SH110-I-EW is a 2-way passive loudspeaker designed for front fill applications. It features two 8-inch low-frequency drivers and a 1.4-inch exit high-frequency compression driver, all mounted within a single 110° horizontal by 60° vertical horn. The enclosure employs patented Synergy Horn technology that aligns drivers within the horn and incorporates a Synergy crossover network to maintain phase coherence between frequency bands, resulting in reduced off-axis frequency response distortion. Acoustic low-pass filters are applied to the low- and mid-frequency drivers to minimize out-of-band harmonic distortion.

The enclosure is constructed from 13-ply Baltic Birch plywood coated with a PolyUrea finish for impact and environmental resistance. Both installation and touring versions include multiple M10 rigging points. High-frequency driver protection is provided by integrated Sentinel multistage limiter circuitry, which prevents overload damage without affecting normal audio dynamics. The system is compatible with DNA amplifiers and processors offering advanced DSP functions.
