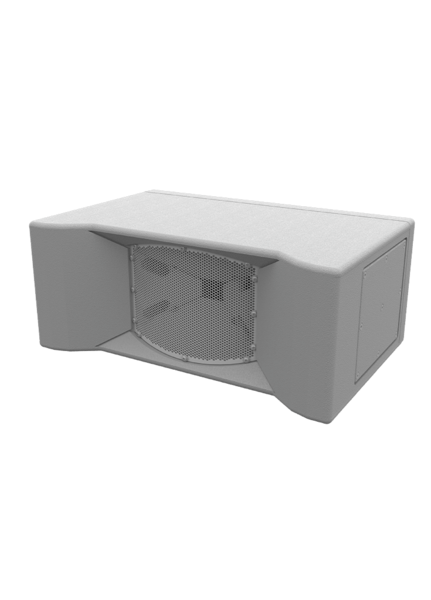

SH110-I-W | 110 X 60 DEGREE SPEAKER, PASSIVE INSTALL VERSION, WHITE

The SH110-I-W is a 2-way passive loudspeaker configured as a front fill unit. It features two 8-inch low-frequency drivers and a 1.4-inch exit high-frequency compression driver mounted within a single 110° horizontal by 60° vertical horn. The design incorporates a Synergy Horn crossover network to achieve phase alignment between the frequency bands, enabling the drivers to operate as a coherent single source and reducing off-axis frequency response distortions. Acoustic low-pass filters are applied to the low and mid-frequency drivers to minimize out-of-band harmonic distortion.

The enclosure is constructed of 13-ply Baltic Birch coated with a PolyUrea finish for impact and weather resistance, and includes multiple M10 rigging points suitable for installation and touring applications. The speaker integrates Sentinel high-frequency driver protection circuitry, which provides multistage limiting to prevent overload damage without affecting normal dynamic range operation. Compatibility with DNA amplifiers and processors enables enhanced performance and digital signal processing management.
