SH25 | 25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)
25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)

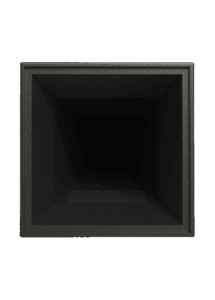

Click image to enlarge
25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)
25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)

SH25
25 X 25 DEGREE "FLASHLIGHT" SPEAKER. PASSIVE (WITH HANDLES)

  • UM : EA

The SH25 is ideal where you need great fidelity, high output and pattern control in both the horizontal and vertical axes. A single SH25 has a frequency response of 90 Hz -18kHz. Combining four in a array will extend the low frequency performance down to 50 Hz. The SH25 features a driver compliment of eight 6.5? woofers, four 4? drivers, and one 1? high compression driver. With the two recessed handles, the SH25 is also easy to maneuver.



Coverage Pattern

25° Horizontal, 25° Vertical

Operating Frequency Range

90Hz-18KHz +/-3dB,
70Hz-20KHz-10dB

Continuous Output

137 dB SPL

Peak Output

143 dB SPL

Sensitivity

110 dB SPL (2.83V into rated Z, at 1 meter)

Magnitude Response

90Hz-18KHz

Driver Complement

Low 8 x 6.5",
Mid 4 x 4",
High 1 x 1"

Dimensions

28 x 28 x 50.7 inches

Weight

176 lbs

Rated Impedance

1,000W continuous,
4,000W peak

Power Rating

1,000W continuous,
4,000W peak
