SH46-I-EDM | 40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

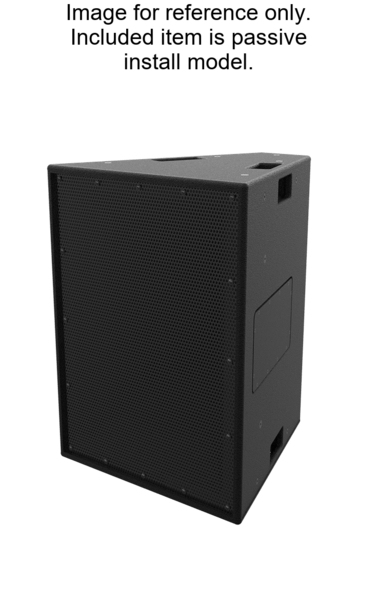

40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION
Click image to enlarge

SH46-I-EDM
40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION

  • UM : EA

The SH46-I-EDM loudspeaker features a compact design optimized for modular array configurations. It has a sensitivity of 106 dB SPL and handles continuous power of 1,400W. The product is available in two configurations: a permanent installation model and a touring model equipped with handles for transport.

The loudspeaker delivers controlled directivity and consistent magnitude and phase response across its operating frequency range.

Coverage Pattern 40˚ horizontal
Operating Frequency Range 71 Hz – 14.5 kHz ±3dB
Continuous Output 135 dB SPL
Peak Output 141 dB SPL
Sensitivity 106 dB SPL (2.83 V at 1 m)
Magnitude Response 58 Hz – 16 kHz
Driver Complement Low 2 x 12″
Rated Impedance 4ohms
Power Rating 1400W Continuous
Item name SH46-I-EDM
