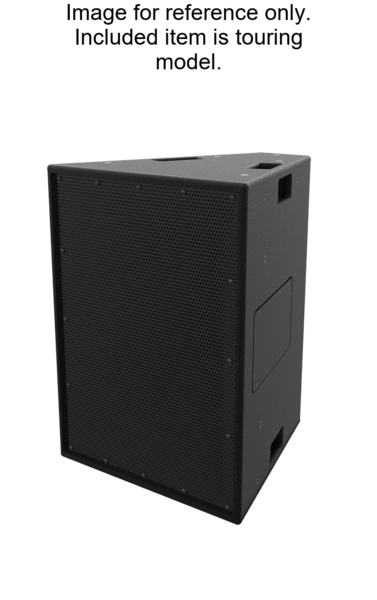

SH46-T-EDM | 40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION
Click image to enlarge

SH46-T-EDM
40 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

  • UM : EA

The SH46-T-EDM loudspeaker features a compact design with a sensitivity of 106 dB SPL and a continuous power handling capacity of 1,400W. It incorporates Synergy Horn technology, offering controlled sound dispersion and defined magnitude and phase response characteristics.

The loudspeaker supports modular array configurations and is available in a touring model equipped with handles for transport. It is suitable for both permanent installations and mobile applications.

Coverage Pattern 40° horizontal
Operating Frequency Range 71 Hz – 14.5 kHz ±3dB
Continuous Output 135 dB SPL
Peak Output 141 dB SPL
Sensitivity 106 dB SPL (2.83V at 1m)
Magnitude Response 58 Hz – 16 kHz
Driver Complement Low 2 x 12″
Rated Impedance 4ohms
Power Rating 1400W Continuous
