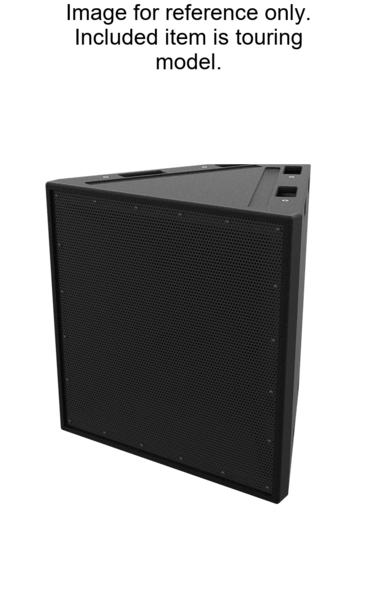

SH50-T-EDM | 50 X 50 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
50 X 50 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION
Click image to enlarge

SH50-T-EDM
50 X 50 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

  • UM : EA

The SH50-T-EDM is a loudspeaker from the Synergy Horn series designed for modular array configurations. It features controlled low-frequency dispersion and consistent magnitude and phase response within its coverage angle. The design supports high sound pressure levels (SPL) and low distortion audio output.

Coverage Pattern 50° horizontal
Operating Frequency Range 50 Hz – 18 kHz ±3 dB
Continuous Output 127 dB SPL
Peak Output 133 dB SPL
Sensitivity 100 dB SPL
Magnitude Response 50 Hz – 18 kHz
Driver Complement Low 2 x 12″
Rated Impedance 4ohms
Power Rating 1000W Continuous
