60 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION
Click image to enlarge

SH60-I-EDM
60 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION

  • UM : EA

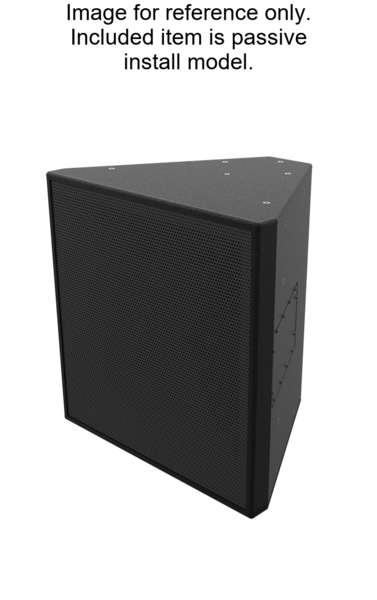

The SH60-I-EDM is a 60-degree variant of the SH50 Synergy Horn loudspeaker. It is designed to provide wider coverage while maintaining full-range performance down to 50 Hz. The loudspeaker supports seamless arraying and features controlled low-frequency pattern dispersion.

This model offers high output levels and precise sound distribution suitable for professional audio applications requiring consistent coverage and full-range frequency response.

Coverage Pattern 60° horizontal
Operating Frequency Range 48 Hz – 18 kHz ±3 dB
Continuous Output 127 dB SPL
Peak Output 133 dB SPL
Sensitivity 100 dB SPL
Magnitude Response 48 Hz - 18 kHz
Driver Complement Low 2 x 12"
Rated Impedance 4ohms
Power Rating 1000W continuous
