60 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

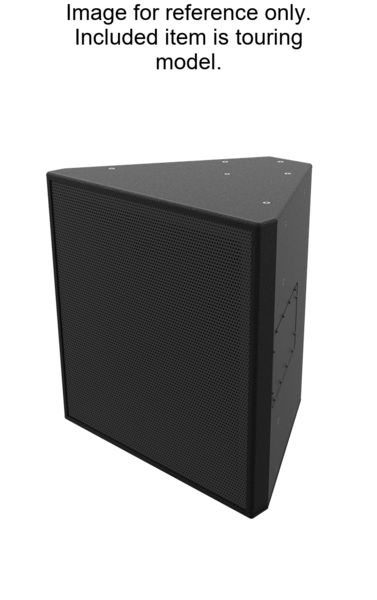

Click image to enlarge

SH60-T-EDM
60 X 60 DEGREE TRAPEZOIDAL SPEAKER, PASSIVE TOURING VERSION

  • UM : EA

The SH60-T-EDM is a 60-degree variant of the SH50 Synergy Horn loudspeaker. It delivers full-range audio performance with frequency response extending down to 50 Hz. The design allows for seamless arraying and maintains consistent low-frequency pattern control.

This loudspeaker features high output capabilities and a wider coverage angle compared to the SH50 model. It is engineered for integration into sound reinforcement systems requiring precise dispersion and extended low-frequency response.

Coverage Pattern 60° horizontal
Operating Frequency Range 48 Hz – 18 kHz ±3 dB
Continuous Output 127 dB SPL
Peak Output 133 dB SPL
Sensitivity 100 dB SPL
Magnitude Response 48 Hz - 18 kHz
Driver Complement 2 x 12″ low drivers
Rated Impedance 4ohms
Power Rating 1000W continuous
