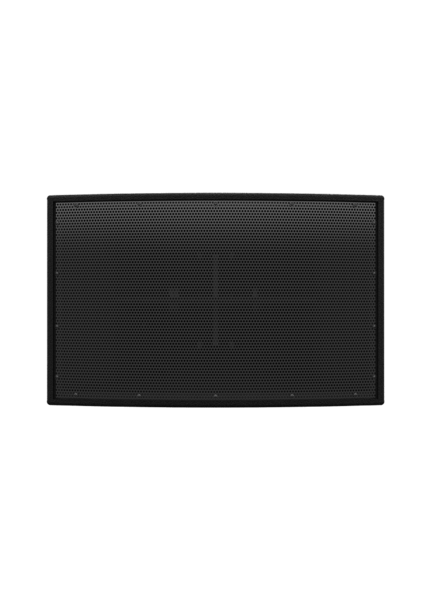

SH62-I | 60 X 20 DEGREE, PASSIVE, BI-AMP OR TRI-AMP OPTION SPEAKER SYSTEM (INSTALLATION VERSION)

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Usually ships in 3-7 days
60 X 20 DEGREE, PASSIVE, BI-AMP OR TRI-AMP OPTION SPEAKER SYSTEM (INSTALLATION VERSION)
Click image to enlarge

SH62-I
60 X 20 DEGREE, PASSIVE, BI-AMP OR TRI-AMP OPTION SPEAKER SYSTEM (INSTALLATION VERSION)

  • UM : EA
  • Estimated Weight: 235.0

This high-powered, full rangeloudspeaker is meant primarily for long throw applications, and the SH62 doesso with unparalleled intelligibility at high volume thanks to the combinationof the Synergy Horn and Paraline technologies. It also has impressiveversatility and can be configured for passive and bi-amp modes.


Features

  • Large formatloudspeaker

  • Long rangeclarity

  • Synergy crossovernetwork

  • Sentinel Limiterprotection circuitry


Coverage Pattern

60° Horizontal, 20° Vertical

Operating Frequency Range

70Hz-18KHz +/- 3dB,
50Hz-20KHz-10dB

Continuous Output

138 dB SPL

Peak Output

144 dB SPL

Sensitivity

105 dB SPL (2.83V into rated Z, at 1 meter), measured in whole space

Driver Complement

Low 2 x 15",
Mid 6 x 6",
High 2 x 1.4"

Dimensions

22.5 x 36 x 30 inches

Weight

235 lbs

Rated Impedance

4 Ohm

Power Rating

2,000W continuous,
8,000W peak
