SH69HT-I-EDM | 60 X 90 DEGREE HALF-TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
60 X 90 DEGREE HALF-TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION
Click image to enlarge

SH69HT-I-EDM
60 X 90 DEGREE HALF-TRAPEZOIDAL SPEAKER, PASSIVE INSTALL VERSION

  • UM : EA

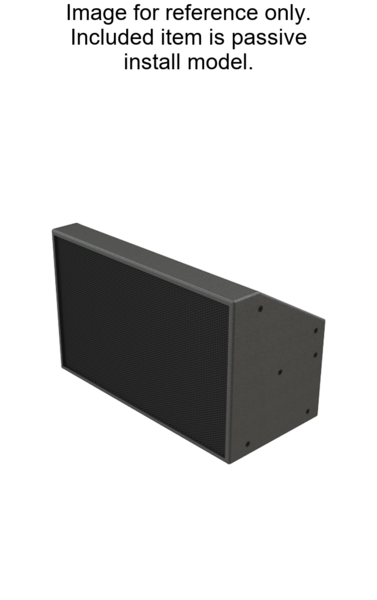

The SH69HT-I-EDM is a full-range loudspeaker system featuring a compact and lightweight enclosure. The speaker cabinet contains two 12-inch woofers, six 4-inch midrange drivers, and one 1-inch high-frequency driver.

Coverage Pattern 60°
Operating Frequency Range 55 Hz – 18 kHz ±3 dB
Continuous Output 126 dB SPL
Peak Output 132 dB SPL
Sensitivity 99 dB SPL
Magnitude Response 55 Hz – 18 kHz
Driver Complement 2 x 12″ low
Rated Impedance 4ohms
Power Rating 1000W continuous
