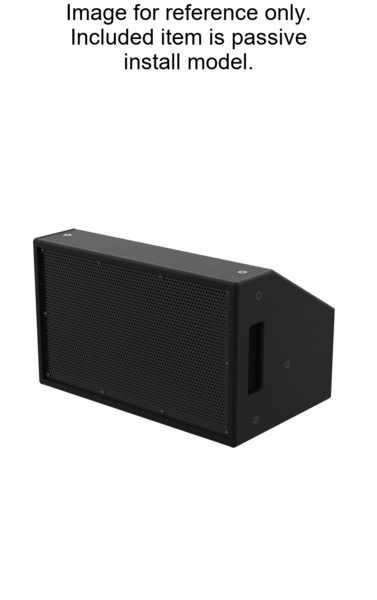

SH95-I-EDM | 90 X 50 DEGREE LOW PROFILE SPEAKER, PASSIVE INSTALL VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
90 X 50 DEGREE LOW PROFILE SPEAKER, PASSIVE INSTALL VERSION
Click image to enlarge

SH95-I-EDM
90 X 50 DEGREE LOW PROFILE SPEAKER, PASSIVE INSTALL VERSION

  • UM : EA

The SH95-I-EDM is a compact loudspeaker designed to deliver the performance characteristics of the SH50 model in a smaller enclosure. It features a 95-degree horizontal by 55-degree vertical coverage pattern, making it suitable for small mains, down fill, front fill, or delay speaker applications.

This model can be integrated with subwoofers to form a compact sound reinforcement system. The design focus on providing precise coverage and versatile deployment options for various audio setups.

Coverage Pattern 95° horizontal
Operating Frequency Range 91 Hz – 20 kHz ±6 dB
Continuous Output 120 dB SPL
Peak Output 126 dB SPL
Sensitivity 97 dB
Magnitude Response 91 Hz – 20 kHz
Driver Complement 2 x 8″ Low/Mid
Rated Impedance 4ohms
Power Rating 400W continuous
