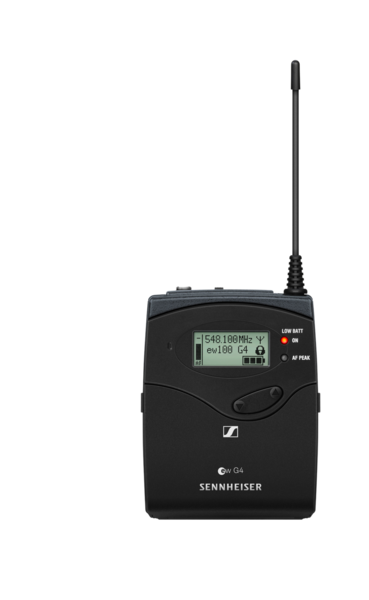

SK 100 G4-A | BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQUENCY RANGE: A (516 - 558 MHZ)
SK 100 G4-A
BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQUENCY RANGE: A (516 - 558 MHZ)
Click image to enlarge
SK 100 G4-A
BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQUENCY RANGE: A (516 - 558 MHZ)
- UM : EA
- Estimated Weight: 2.7
Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.
Features:
- Robust bodypack transmitter for daily use on stage.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
| Total harmonic distortion (THD) | = 0.9 % |
|---|---|
| Audio frequency response (Hz) | Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz |
| Audio frequency response | Mic: 80 to 18,000 Hz Line: 25 to 18,000 Hz |
| Signal-to-noise ratio | = 110 dBA |
| Battery operating time (h) | Typically 8 h |
| Input impedance | 40 kO, unbalanced / 1 MO |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Height (mm) | 73 |
| Length (mm) | 350 |
| Weight (g) | (incl. batteries) approx. 160 g |
| Width (mm) | 81 |
| Product height | 73 |
| Product weight (g) | (incl. batteries) approx. 160 g |
| Product width | 81 |
