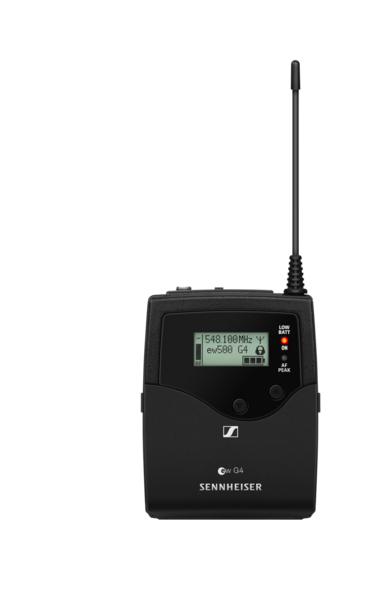

SK 500 G4-AW+ | BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQ RANGE: AW+ (470 - 558 MHZ)
SK 500 G4-AW+
BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQ RANGE: AW+ (470 - 558 MHZ)
Click image to enlarge
SK 500 G4-AW+
BODYPACK TRANSMITTER WITH 1/8" AUDIO INPUT SOCKET (EW CONNECTOR), FREQ RANGE: AW+ (470 - 558 MHZ)
- UM : EA
- Estimated Weight: 4.1
Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
Features:
- Powerful bodypack transmitter with increased bandwidth and transmission power
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
| Total harmonic distortion (THD) | = 0.9 % |
|---|---|
| Audio frequency response (Hz) | Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz |
| Audio frequency response | Mic: 80 to 18,000 Hz, Line: 25 to 18,000 Hz |
| Signal-to-noise ratio | = 115 dBA |
| Battery operating time (h) | Typically 8 h |
| Input impedance | 40 kO, unbalanced / 1 MO |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (g) | (incl. batteries) approx. 160 g |
| Product weight (g) | (incl. batteries) approx. 160 g |
