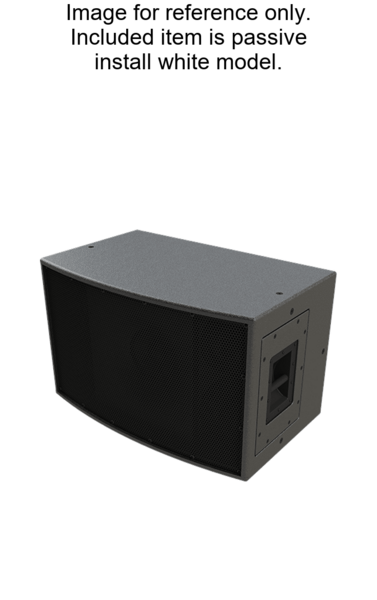

SM100B-I-W | 100° CONICAL FULL RANGE SPEAKER W/ 1 X 8" COAXIAL HF/MF AND 4 X 8" WOOFERS, PASSIVE INSTALL VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
100° CONICAL FULL RANGE SPEAKER W/ 1 X 8" COAXIAL HF/MF AND 4 X 8" WOOFERS, PASSIVE INSTALL VERSION
Click image to enlarge

SM100B-I-W
100° CONICAL FULL RANGE SPEAKER W/ 1 X 8" COAXIAL HF/MF AND 4 X 8" WOOFERS, PASSIVE INSTALL VERSION

  • UM : EA
  • Estimated Weight: 135.0

This loudspeaker combines the incredible power of a Tapped Horn wrapped around the high fidelity and pinpoint pattern control of an SM-100. Thanks to its tight, low-end response, one loudspeaker per venue side (with or without subwoofers) will do an amazing job of covering a substantial seating area. It is truly an amazing one box solution.



Coverage Pattern

110° conical

Operating Frequency Range

50Hz-17KHz +/-3dB,
30Hz-24KHz +/-10dB

Continuous Output

124 dB SPL

Peak Output

130 dB SPL

Sensitivity

98 dB SPL (2.83V into rated Z, at 1 meter) measured in free space

Magnitude Response

45Hz-18KHz

Driver Complement

Low 4 x 8",
High 1 x 8" coaxial

Dimensions

33.5 x 20.5 x 19 inches

Weight

135 lbs

Rated Impedance

4 Ohms

Power Rating

800W continuous,
3,200W peak
