SM60F-T-EDM | 60° CONICAL FULL RANGE SPEAKER, PASSIVE TOURING VERSION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

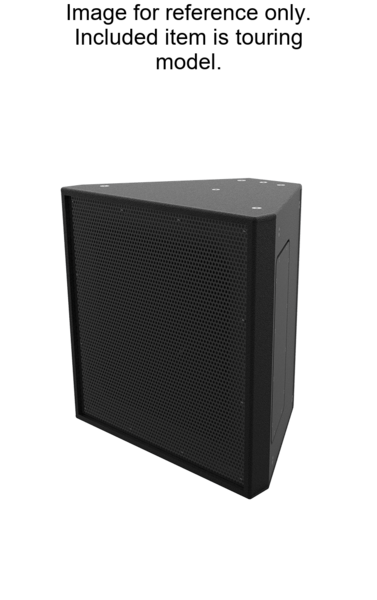

60° CONICAL FULL RANGE SPEAKER, PASSIVE TOURING VERSION
Click image to enlarge

SM60F-T-EDM
60° CONICAL FULL RANGE SPEAKER, PASSIVE TOURING VERSION

  • UM : EA

The SM60F-T-EDM is a compact loudspeaker enclosure designed for modular array configurations. It features controlled low-frequency pattern performance and a magnitude/phase response optimized for sound reinforcement applications. The product is available in versions suitable for touring and permanent installation.

Coverage pattern 60° horizontal
Operating frequency range 66 Hz – 24 kHz ±4 dB
Continuous output 125 dB SPL
Peak output 131 dB SPL
Sensitivity 99 dB
Magnitude response 66 Hz – 24 kHz
Driver complement 2 x 8” lows
Rated impedance 4ohms
Power rating 800W continuous
Item name SM60F-T-EDM
