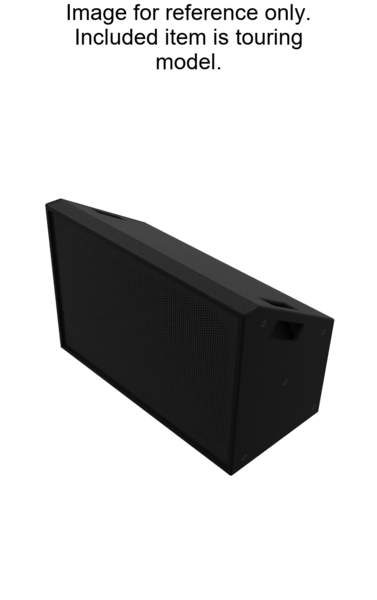

90 X 60 DEGREE FULL RANGE SPEAKER, PASSIVE TOURING VERSION
Click image to enlarge

SM96-T-EDM
90 X 60 DEGREE FULL RANGE SPEAKER, PASSIVE TOURING VERSION

  • UM : EA

The SM96-T-EDM is a speaker featuring a coverage pattern of 90 degrees horizontal by 60 degrees vertical. It is designed with a compact enclosure and supports modular array configurations. The speaker provides controlled low-frequency dispersion and maintains consistent magnitude and phase response across its operating range. The SM96-T-EDM is suitable for both installation and touring applications.

Coverage pattern 90° horizontal
Operating frequency range 55 Hz – 24 kHz ±3 dB
Continuous output 124 dB SPL
Peak output 130 dB SPL
Sensitivity 98 dB SPL
Magnitude response 55 Hz – 24 kHz
Driver complement 2 × 8″ low drivers
Rated impedance 4ohms
Power rating 800W continuous
