ST-CL2 | COMPRESSOR/LIMITER - LINE LEVEL
ST-CL2
COMPRESSOR/LIMITER - LINE LEVEL
ST-CL2
COMPRESSOR/LIMITER - LINE LEVEL
- UM : EA

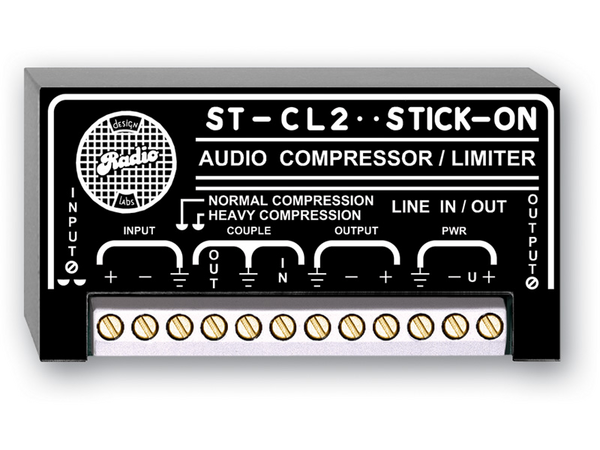

The ST-CL2 is a high performance compressor/limiter designed to maintain a constant average output level and effective peak control over a wide range of input levels. The input and output are line level and each may be wired balanced or unbalanced. Trimmers provide adjustment for all usual professional and consumer audio input and output levels. Internal detectors feed three timing circuits. The threshold level and slope of each timing circuit are incremented to respond sequentially to signals of varying amplitude and energy levels. The ST-CL2 features a soft-knee compression threshold and compression ratio which automatically adjust to the program material. Two LED indicators cover the incremental ranges of compression, making setting of the input level quick and easy. Two ST-CL2s may be strapped together for stereo operation by connecting the coupling terminals between the two modules.
Features:
- Positive Audio Level Protection
- Smooth Inaudible Gain Reduction
- Tight Audio Peak Control
- Very Low Noise Compressor
- Multi Stage Incremental Gain Reduction
- Fully Automatic Operation
- Superb Performance with Minimal Setup
- RDL SupplyFlex Power Input Configuration
| Input | 10 kΩ Balanced (may be connected unbalanced) |
|---|---|
| Input Signal Range | -10 to +4 dBu, adjustable (for 6 dB gain reduction) +22 dBu maximum |
| Output | 150 Ω Balanced (may be connected unbalanced) |
| Output Signal Range | OFF to +8 dBu, adjustable |
| Frequency Response | 10 Hz to 20 kHz (± 0.2 dB) over full compression range |
| Noise below +4 dBu output | < -78 dB (unweighted +4 dBu input/output) |
| Total Harmonic Distortion | < 0.05% @ 1 kHz below compression threshold < 0.1% @ 1 kHz with 3 dB gain reduction < 0.15% @ 1 kHz with 6 dB gain reduction |
| CMRR | > 60 dB (50 to 120 Hz) |
| Attack Time | Averaging Compressor: 500 ms (+4 dBu input) Fast Compression: <10 ms (+20 dBu input) Peak Limiting: Instantaneous |
| Release Time | Automatically adjusting up to 500 ms |
| Compression Ratio | Automatically adjusting 1.5: 1 to 10: 1 |
| Peak Limiter | INF: 1 |
| Interconnection | Stereo COUPLE interconnection provided |
| Indicators (2) | Yellow LED for NORMAL Compression,Red LED for HEAVY Compression |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | 24 Vdc @ 50 mA, SupplyFlex |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.145 lbs. |
| Shipping Weight | 0.2 lbs. |
| Package Dimensions | 2 x 2 x 4 in. |
