ST-CX2S | SUBWOOFER CROSSOVER FILTER
ST-CX2S
SUBWOOFER CROSSOVER FILTER
ST-CX2S
SUBWOOFER CROSSOVER FILTER
- UM : EA

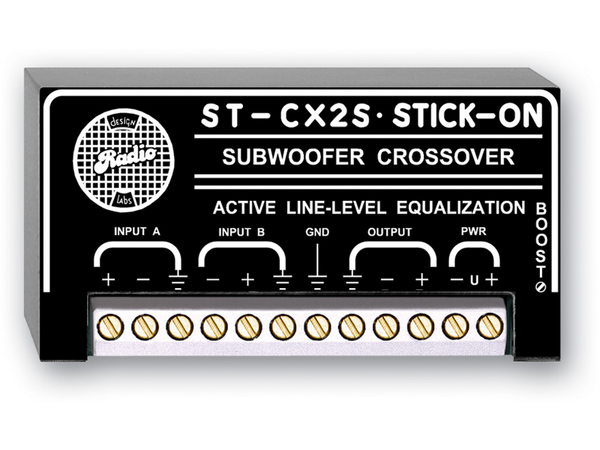

The ST-CX2S is a subwoofer signal equalizer in the STICK-ON series of products from RDL. The ST-CX2S offers flexibility in equalization adjustment, with the exceptional performance of RDL.
The ST-CX2S features two separate, isolated balanced bridging inputs which may each be wired balanced or unbalanced. The output driver is 150 Ω balanced which can drive low or high impedance balanced or unbalanced lines. The module operates at unity gain at 63 Hz (balanced input to balanced output). A BOOST control permits adjustment of the output at 32 Hz from flat to +5.5 dB.
The ST-CX2S features RDL''s SupplyFlex power input configuration for operation directly from ground-referenced, floating or bipolar 24 Vdc power.
Features:
- Active Subwoofer Equalization
- Subwoofer Signal from Stereo Source
- Adjustable Low-Frequency Boost
- Low-Noise and Low-Distortion Crossover
- Active Crossover Component
- RDL SupplyFlex Power Input Configuration
| Inputs (2) | 50 kΩ balanced line-level (+4 dBu) |
|---|---|
| Output | 150 Ω balanced line-level (+4 dBu) |
| Output Bandwidth | 22 Hz to 80 Hz, (adjustable BOOST) |
| High Frequency Attenuation | > 45 dB (at 400 Hz) |
| Gain | Unity at 63 Hz adjustable flat to +5.5 dB at 32 Hz |
| Headroom | 18 dB minimum at 30 Hz (maximum boost), 22 dB typical |
| THD+N | < 0.05% |
| Input CMRR | > 60 dB (30 Hz or above) |
| Residual Noise | < 90 dB (referred to +4 dBu) 95 dB typical |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED or FLOATING, 24 Vdc @ 30 mA |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.145 lbs. |
| Shipping Weight | 0.195 lbs. |
| Package Dimensions | 2 x 2 x 4 in. |
