ST-DA3 | LINE LEVEL DISTRIBUTION AMPLIFIER - 1X3

  • MAP: $201.39 / EA
  • List Price: $268.52 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
LINE LEVEL DISTRIBUTION AMPLIFIER - 1X3

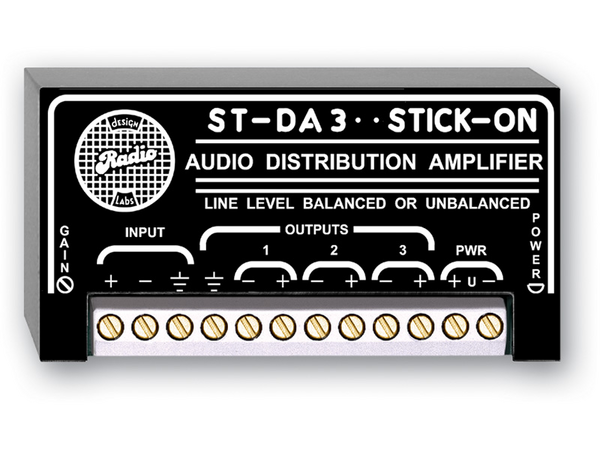

Click image to enlarge

ST-DA3
LINE LEVEL DISTRIBUTION AMPLIFIER - 1X3

  • UM : EA

The ST-DA3 allows the bridging of any audio line, adjustment of the gain, and driving up to three outputs. Each output is driven by a separate amplifier, and is isolated from both the input and from the other outputs. The circuit design allows the input to accept either balanced or unbalanced signals, of either high or low impedance; and each output may be connected either balanced or unbalanced. The ST-DA3 features wideband circuitry that produces the unsurpassed pure clarity for which RDL products are known.

Features:

  • Audio Distribution with up to 3 Outputs
  • Balanced or Unbalanced Input and Outputs
  • Bridge an Audio Line for Local Distribution
  • Distribution with Impedance Conversion
  • Distribution with Gain or Loss
  • Inputs and Outputs RF-Protected
  • 1×3 Mono or Use Two Units for Stereo
  • RDL SupplyFlex Power Input Configuration
Input 20 kΩ balanced or unbalanced
Input Signal -15 dBV to +21 dBu (for +4 dBu output)
Maximum Input Level +24 dBu
Outputs (3) 150 Ω balanced or 75 Ωunbalanced
Output Signal
Balanced +4 dBu nominal balanced
Unbalanced 6 dB below balanced line level
Maximum Output Level +25 dBu
Frequency Response 10 Hz to 100 kHz (± 0.05 dB)
THD+N < 0.002% (unity gain)
IMD < 0.003% (unity gain)
Noise below +4 dBu < -98 dB (unity gain)
Headroom > 20 dB (above +4 dBu)
Gain Unity ± 17 dB (adjustable)
CMRR > 60 dB (50 Hz to 120 Hz)
Power Requirement GROUND-REFERENCED or FLOATING, 24 Vdc @ 70 mA
Ambient Operating Environment 0° C to 55° C
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.145 lbs.
Shipping Weight 0.2 lbs.
Package Dimensions 2 x 2 x 4 in.
