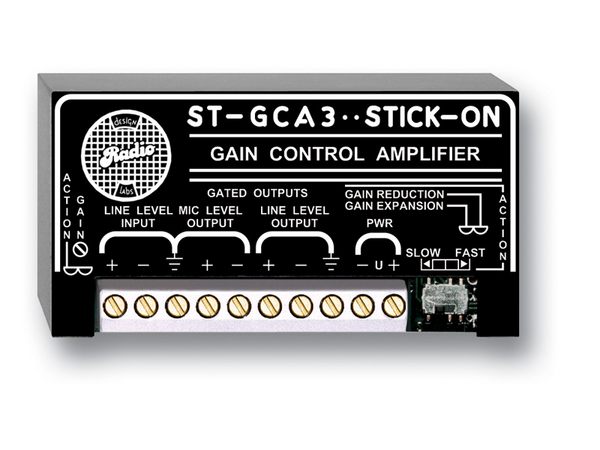

ST-GCA3 | GAIN CONTROL AMPLIFIER - LINE LEVEL
ST-GCA3
GAIN CONTROL AMPLIFIER - LINE LEVEL
ST-GCA3
GAIN CONTROL AMPLIFIER - LINE LEVEL
- UM : EA
The ST-GCA3 constantly adjusts for changes in input levels, bringing up low levels, and reducing gain for high levels. The audio level is constantly adjusted to maintain the correct output. The AGC adjustment rate is switch-selectable. Making audio levels uniform and consistent improves the performance of nearly any type of audio system, and the ST-GCA3 SLOW mode is ideal for leveling music sources. The FAST setting of the ST-GCA3 makes it ideal for use in systems prone to loud bursts of audio, and inconsistent levels which must be constantly and quickly corrected. In paging systems, intercom systems, and mic mixing applications where intelligibility is a must the ST-GCA3 FAST mode can be the key to optimum performance.
Features:
- Automatic Gain Control
- Wide Dynamic Range AGC
- Slow Inaudible Gain-Reduction
- Tight Dynamic Control
- Positive, Fast Gain Reduction
- Low-Noise and Low-Distortion AGC
- RDL SupplyFlex Power Input Configuration
| Input | +4 dBu balanced (nominal) -45 dBu to +20 dBu for rated output |
|---|---|
| Maximum Input Level | +26 dBu |
| Outputs (2) | +4 dBu, 150 Ω balanced LINE (nominal, +0/-3 dB) -45 dBu balanced MIC into 150 Ω |
| AGC Range | > 40 dB (output level maintained within 3 dB) |
| Frequency Response | 10 Hz to 20 kHz (± 0.75 dB) |
| Noise | No input signal, output un-muted: < -70 dBNo input signal, output muted: < -80 dBInput signal present, output muted: < -50 dB |
| Dimensions | Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm) |
| THD+N | < 0.3% (50 Hz to 20 kHz Typ. 0.05% @ 1 kHz) |
| Mute Threshold | -46 dB below max input -28 dB below normal input |
| Muting Response | 15 sec. for 50 dB |
| SLOW AGC response | 8 sec. for 20 dB average level adjustment |
| FAST AGC response | 3 sec. for 20 dB average level adjustment |
| On Delay | 50 ms to ramp from muted to fully on condition |
| Indicators (2) | LED, green variable intensity shows audio expansionLED, yellow variable intensity shows audio gain reductionNote: Both LEDs display equal intensity for normal input level(equal available expansion and gain reduction). |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED or FLOATING, 24 Vdc @ 40 mA |
| Package Type | Cardboard Box |
| Tariff code | 8543.70.9860 |
| WEEE weight | 0.145 lbs. |
| Shipping Weight | 0.2 lbs. |
| Package Dimensions | 2 x 2 x 4 in. |
