ST-LCR1 | LOGIC CONTROLLED RELAY - MOMENTARY
ST-LCR1
LOGIC CONTROLLED RELAY - MOMENTARY
Click image to enlarge
ST-LCR1
LOGIC CONTROLLED RELAY - MOMENTARY
- UM : EA
- Estimated Weight: 0.3

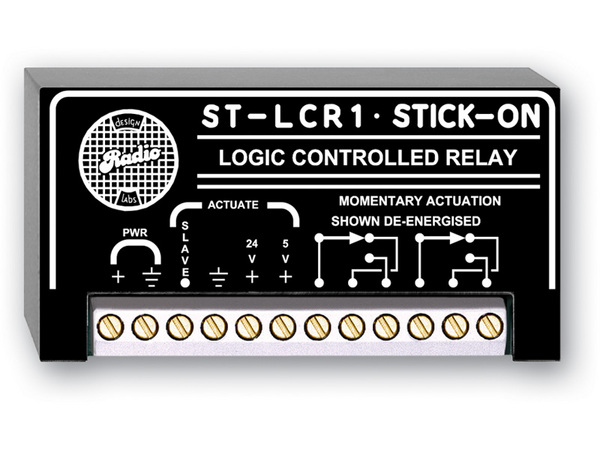

The ST-LCR1 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR1 provides momentary operation and is ideally suited where additional switching contacts are needed to be added to nearly any type of control signal.
Features:
- Add Contacts to Any Control Signal
- Activation from Logic Circuits
- DPDT Switching Relay
- Open-Collector Switching
- Control from Switch, Button or Logic Circuits
| Dimensions | Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), D... |
|---|---|
| Control Inputs | SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground.Input from other equipment''s open-collector output turns relay on when open-collector is on. Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1.5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied.24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied. |
| Control Output | SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs |
| Switching Contacts | Double-pole, double-throw |
| Maximum Switching Power | 60 W(220 Vdc, 125 Vac, 2 A) |
| Ambient Operating Environment | -10° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 50 mA ** Assumes 20 mA max load at SLAVE output |
| Package Type | Cardboard Box |
| WEEE weight | 0.135 lbs. |
| Shipping Weight | 0.185 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
×
