ST-LCR2 | LOGIC CONTROLLED RELAY - LATCHING

  • MAP: $156.57 / EA
  • List Price: $208.76 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
LOGIC CONTROLLED RELAY - LATCHING

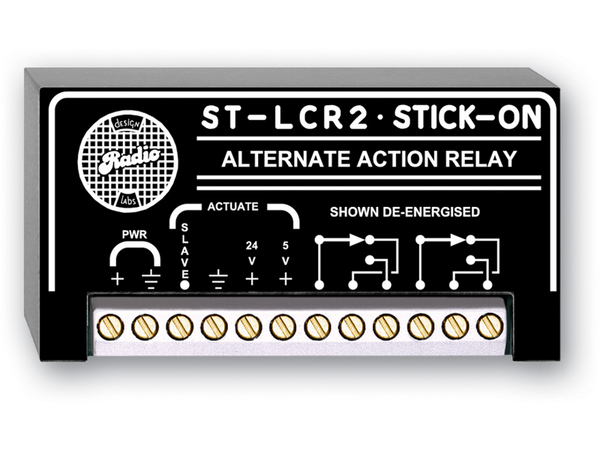

Click image to enlarge

ST-LCR2
LOGIC CONTROLLED RELAY - LATCHING

  • UM : EA
  • Estimated Weight: 0.9

The ST-LCR2 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR2 is used where momentary pulses must alternately toggle on/off switching contacts. Open-collector slave output allows connection of remote on indicator or an ST-LCR1 for additional relay contacts.

Features:

  • Alternate-Action Switching
  • Add Contacts to Any Control Signal
  • Activation from Logic Circuits
  • DPDT Switching Relay
  • Open-Collector Switching
  • Control from Switch, Button, or Logic Circuits
Control Inputs SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting slave input to ground. Input from other equipment''s open-collector output turns relay on when open-collector is on. Note: RDLswitching STICK-ONs have available open-collector outputs suitable for driving ST-LCR2. 5 V+ terminal accepts 3.5 to 12 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low,then turns off again the next time it is pulsed high then low. 24 V+ terminal accepts 12 to 35 Vdc to activate control circuit. Relay turns on when this input is pulsed high then low, then turns off again the next time it is pulsed high then low.
Output Slave Open-collector @ 25 mA suitable to drive indicators or slave LCRs.
Switching Contacts Double-pole, double-throw
Maximum Switching Power 60 W (220 Vdc, 125 Vac, 2 A)
Ambient Operating Environment -10° C to 55° C
Power Requirement GROUND-REFERENCED, 24 Vdc @ 50 mA (assuming 20mA max load at SLAVE output)
Dimensions Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Package Type Cardboard Box
WEEE weight 0.145 lbs.
Shipping Weight 0.195 lbs.
Tariff code 8543.70.9860
Package Dimensions 2 x 2 x 4 in.
