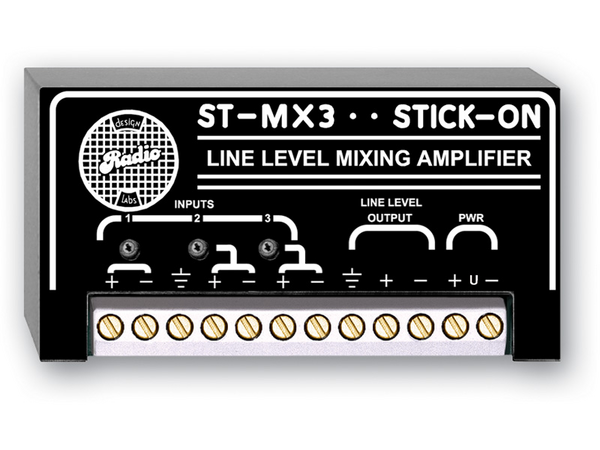

ST-MX3 | 3 LINE INPUT MIXER - LINE OUT
ST-MX3
3 LINE INPUT MIXER - LINE OUT
Click image to enlarge
ST-MX3
3 LINE INPUT MIXER - LINE OUT
- UM : EA
The ST-MX3 is a line-level mixer module in the STICK-ON Series of products. It provides audio mixing of three line-level inputs with individual input gain adjustments. The line-level output is capable of driving either high or low impedance, balanced or unbalanced loads.
The ST-MX3 operates from ground-referenced floating or bipolar dc power.
For installations with microphone level inputs, use the ST-UMX3 Universal Audio Mixer.
Features:
- Mix Line-Level Signals
- Three Individually Adjustable Inputs
- Add Additional Line Level Inputs to an Existing Mixer
- Combine Signals of Different Level, Impedance or Balanced /Unbalanced Configuration
- Isolation Between Input Signals
- Low-Noise and Low-Distortion Performance
- RDL SupplyFlex Power Input Configuration
| Inputs (3) | 30 kΩ balanced or unbalanced bridging |
|---|---|
| Input Level | -20 dBu to +18 dBu (for +4 dBu output)-24 dBu to +14 dBu (for 0 dBu output) |
| Output | 400 Ω to drive low or high impedance balanced or unbalanced lines |
| Output Level | +4 dBu nominal, (adjustable unbalanced output 6 dB below balanced line level) |
| THD+N | < 0.03% (10 Hz to 20 kHz) |
| Frequency Response | 10 Hz to 20 kHz (± 0.5 dB) |
| Noise | < -80 dB (all inputs @ 10 dB gain, referenced to +4 dBu) |
| Headroom | 18 dB |
| Gain (each input) | -14 dB to +24 dB (adjustable) |
| CMRR | > 50 dB (50 to 120 Hz) |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED or FLOATING, 24 Vdc @ 55 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.12 lbs. |
| Shipping Weight | 0.17 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
×
