ST-NG1 | WHITE AND PINK NOISE GENERATOR
ST-NG1
WHITE AND PINK NOISE GENERATOR
ST-NG1
WHITE AND PINK NOISE GENERATOR
- UM : EA

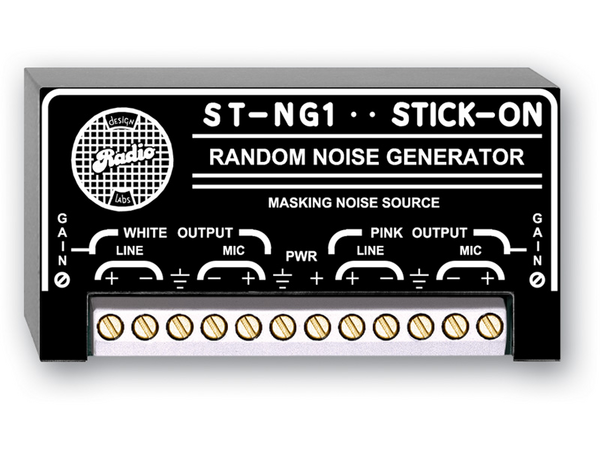

The ST-NG1 is the ideal choice where random white or pink noise is needed. It is suitable either as a reference noise source for audio measurements or as a masking noise source in engineered sound or counter-intelligence applications.
Amplitude limiting circuitry in the ST-NG1 controls extreme peak excursions while preserving random variations of at least 20 dB. The noise generating circuitry in the ST-NG1 is truly random analog noise occupying the full bandwidth from 20 Hz to 20 kHz. This makes the ST-NG1 ideal in masking environments where secure, random noise is required. Unlike the typical digitally generated pseudo-random noise generators which can be decoded and removed by effective intelligence equipment, the ST-NG1 produces no repetitive frequency or amplitude pattern.
Wherever white or pink noise signals are needed, the ST-NG1 is the ideal choice. Use the ST-NG1 individually, or combine it with other RDL® products as part of a complete audio/video system.
Features:
- Random Noise Source
- Masking Noise Sources
- Pink Noise
- White Noise
- Mic and/or Line Level Noise Signals
| Outputs (each source) | +4 dBu balanced line-level-45 dBu balanced mic-level |
|---|---|
| Output Level | OFF to +8 dBu (line-level output adjustable)Off to -40 dBu (mic-level output) |
| Spectral Distribution | White and Pink |
| Noise Band | 20 Hz to 20 kHz |
| Power Requirement | GROUND-REFERENCED 24 Vdc @ 30 mA |
| Ambient Operating Environment | 0° C to 55° C |
| Package Type | Cardboard Box |
| WEEE weight | 0.15 lbs. |
| Shipping Weight | 0.205 lbs. |
| Tariff code | 8543.20.0000 |
| Package Dimensions | 2 x 2 x 4 in. |
