ST-OSC2A | AUDIO OSCILLATOR - 1KHZ AND 10 KHZ

  • MAP: $150.03 / EA
  • List Price: $200.03 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
AUDIO OSCILLATOR - 1KHZ AND 10 KHZ
Click image to enlarge

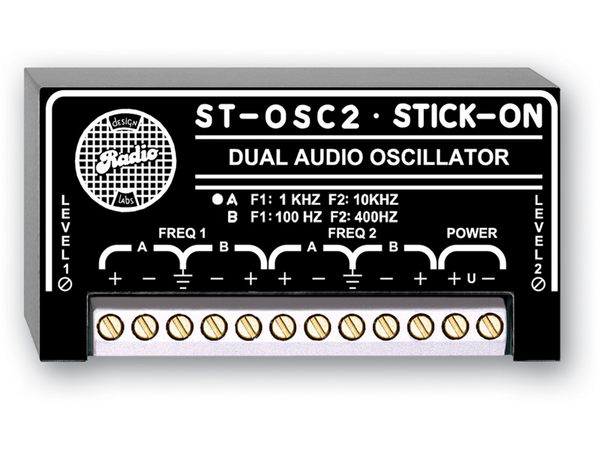

ST-OSC2A
AUDIO OSCILLATOR - 1KHZ AND 10 KHZ

  • UM : EA

The ST-OSC2 products feature RDL''s SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the POWER minus terminal and any module ground, the module power becomes ground-referenced.

Features:

  • Precision Sine-Wave Audio Signal
  • Amplitude-Stable Oscillator
  • Two Single-Tone Oscillators
  • 1 kHz and 10 kHz
  • Precise User-Adjustable Levels
  • Each Oscillator Has Two Separate Outputs
  • RDL SupplyFlex Power Input Configuration
Outputs 2 for each oscillator, bal. or unbal.
Output Impedance 200 Ω to drive high or low Z lines
Nominal Frequencies
ST-OSC2A 1 kHz and 10 kHz
ST-OSC2B 100 Hz and 400 Hz
THD+N
ST-OSC2A 0.5%
ST-OSC2B < 3%
Output Level Off to +10 dBu (adjustable) 600 Ω load. Level Maintained by internal AGC circuit
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED or FLOATING, 24 Vdc @ 80 mA
Package Type Cardboard Box
Tariff code 8543.20.0000
WEEE weight 0.165 lbs.
Shipping Weight 0.215 lbs.
Package Dimensions 2 x 2 x 4 in.
