ST-PA6
AUDIO POWER AMPLIFIER - 6 WATT
ST-PA6
AUDIO POWER AMPLIFIER - 6 WATT
- UM : EA
- Estimated Weight: 2.0

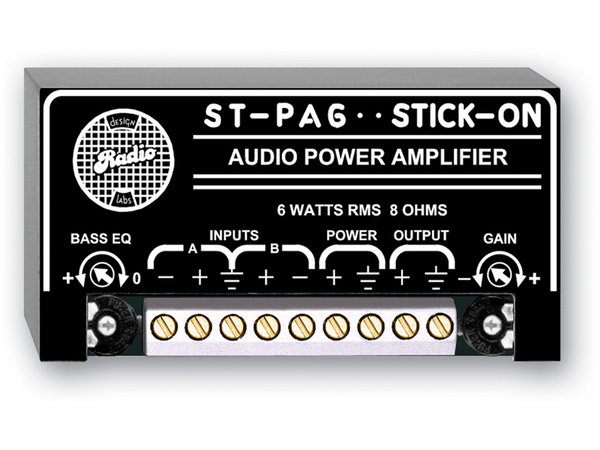

The ST-PA6 represents a breakthrough in the traditional power vs. size ratio. Present technology permits features and performance at the most economical cost ever. The ST-PA6 offers 6 watts of power for a price you would expect to pay for 3 watts.
The ST-PA6 features two balanced audio inputs, a gain control, equalization control and an 8 O output. The output is designed to deliver a clean 6 watts RMS into an 8 O speaker. Each input is a balanced bridge, with the two inputs actively mixed equally. This is particularly useful for monitoring a stereo line. The output stage features protection against short-circuits and thermal overload. The output protection automatically resets once the condition is removed, making fuse protection unnecessary.
Features:
- 6 Watts RMS into 8 O
- Amplifier with Balanced Audio Inputs
- Built-In 2-Input Mixer
- Low-Noise and Low-Distortion Amplifier
- Amplifier with Loudness Equalization
| Inputs (2) | 100 kΩ balanced (may be wired balanced or unbalanced) |
|---|---|
| Input Level | 400 mV (RMS) minimum (for rated power output) |
| Frequency Response | 35 Hz to 20 kHz (± 1.5 dB w/EQ setting flat) |
| Equalization | (Single-turn trimmer): Flat to +5 dB @ 60 Hz (center frequency of boost) Flat to +4 dB @ 100 HzFlat to +3 dB @ 120 Hz |
| THD+N | < 0.35% |
| Noise | < -60 dB |
| Output | 8 Ω unbalanced, 6 watts RMS |
| Ambient Operating Environment | 0° C to 40° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 400 mA |
| Package Type | Cardboard Box |
| WEEE weight | 0.15 lbs. |
| Shipping Weight | 0.205 lbs. |
| Tariff code | 8543.70.9910 |
| Package Dimensions | 2 x 2 x 4 in. |
