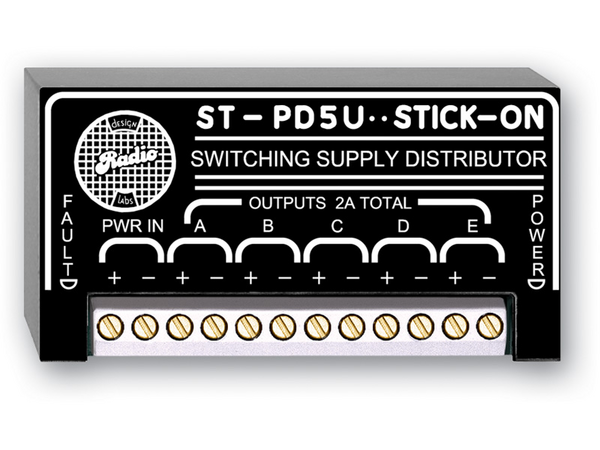

The ST-PD5U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the ST-PD5U ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the ST-PD5U disconnects the load until the condition is corrected.
In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module
originate at the power supply output. The ST-PD5U serves as the power source for each of five modules. A single ST-PD5U can provide power to RDL''s floating modules. A separate ST-PD5U can provide power to ground-referenced modules. (Do not attempt to intermix floating and ground-referenced modules from a single ST-PD5U.)
Wherever power distribution from a switching power supply is needed, the ST-PD5U is the ideal choice. Use the ST-PD5U combined with other RDL RACK-UP, STICK-ON, Flat-Pak or TX series products as part of a complete audio/video system.
Features:
- Distribution of 24 Vdc Power
- Soft-Start from Switching Supply
- Distribution of dc Power
- Up to 5 Power Distribution Points
- Voltage Presence Indication
- Reverse Voltage Protection
| Input/Output Voltage | 24 Vdc @ 2 A (Intended for use with current limited switching supply) |
|---|---|
| Number of Outputs (5) | Total load current must not exceed 2 A |
| Indicators (2) | POWER LED, FAULT LED indicating output inactive due to excessive load current |
| Ambient Operating Environment | 0° C to 50° C |
| Package Type | Cardboard Box |
| WEEE weight | 0.16 lbs. |
| Shipping Weight | 0.21 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
