RAMP GENERATOR - 0 TO 10 VDC OUTPUT
Click image to enlarge

ST-RG1
RAMP GENERATOR - 0 TO 10 VDC OUTPUT

  • UM : EA
  • Estimated Weight: 2.0

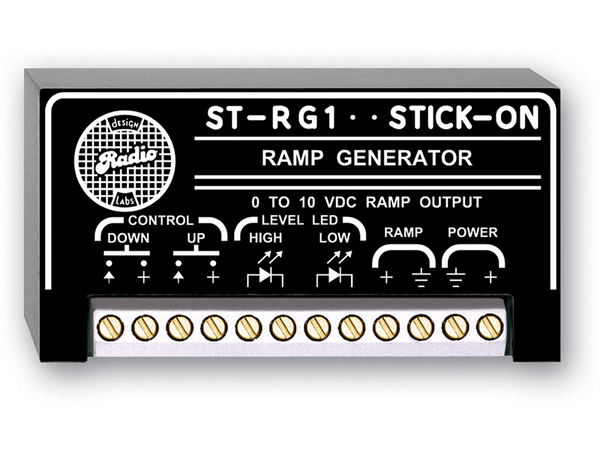

The ST-RG1 is a digitally generated 0 to 10 volt Ramp Generator which provides the ideal interface for audio volume control from multiple points with the ST-VCA3. Any number of Up and Down buttons may be connected to the ST-RG1. Sufficient drive is provided from the ST-RG1 to control up to six ST-VCA3s.

Features:

  • Ramp Generator with 0 to 10 Volt Output
  • Remote Control of ST-VCA3 modules
  • Multiple VCA Remote Control Points
  • Pushbutton Up / Down Ramp Control
  • Dual LED Outputs for Position Indication
  • Ramp Output Capable of Driving Six VCAs
  • Buffered, De-Bounced Switch Inputs
Control Inputs 1 to ramp up, 1 to ramp down
Input Logic External closure pulls normally low input to +15 Vdc to activate UP or DOWN function
Indicator Outputs 1 to drive red LED (partial to fully OFF)1 to drive green LED (partial to fully ON)
LED Output Current 0 to 3 mA (to drive low current, high intensity LEDs)
Ramp Output 0 to 10 volts nominal, (typical < 0.1 V to > 9.8 V under ST-VCA3 load)
Minimum Step 200 mV nominal
Ramp Time 5 seconds nominal (fully off to fully on
or fully on to fully off)
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED, 24 Vdc @ 40 mA
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.155 lbs.
Shipping Weight 0.21 lbs.
Package Dimensions 2 x 2 x 4 in.
