ST-SX4 | UNBALANCED AUDIO SWITCHER - 4X1
ST-SX4
UNBALANCED AUDIO SWITCHER - 4X1

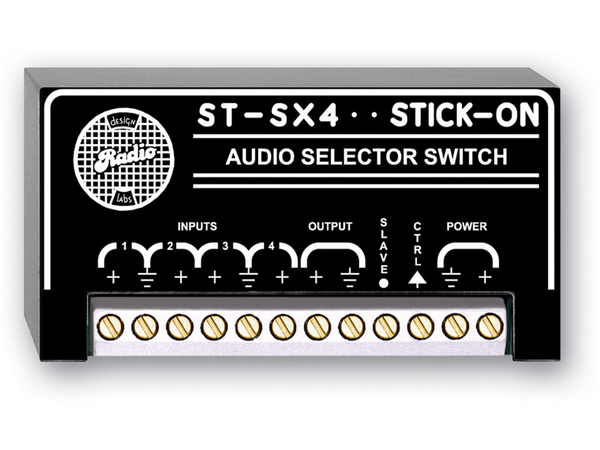

Click image to enlarge
ST-SX4
UNBALANCED AUDIO SWITCHER - 4X1
- UM : EA
The ST-SX4 accepts up to four unbalanced audio sources. Any of these sources may be selected to feed the output, or all sources may be switched off. The output from the ST-SX4 is unbalanced. Control of the module is accomplished through a single input terminal. Connection of a specified resistance between the CTRL input and ground causes the desired input to be switched on. The necessary external resistors are supplied with the ST-SX4. The ST-SX4 may be remote controlled using the D SERIES-RC4ST remote control.
Features:
- Select 1 of 4 Unbalanced Audio Sources
- Audio Selection from Remote Location
- Remote Switching from Single Control Pair
- All Solid-State Audio Switching
- Slave Capability for Stereo Switching
| 3 | 22 kΩ |
|---|---|
| 4 | None |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 45 mA |
| Input Selected | Resistance Value |
| Control Input | Single terminal to be connected to ground terminal to select desired channel. |
| Control Input Resistance | 10 kΩ (pullup to +15 Vdc) |
| CONTROL | |
| Residual Noise | < -70 dB (referred to -10 dBV) |
| Off-Channel Attenuation | > 85 dB @ 1 kHz> 80 dB @ 10 kHz> 75 dB @ 20 kHz |
| Crosstalk | Below noise floor |
| Output Impedance | < 50 Ω, unbalanced |
| Input Impedance | 100 kΩ, unbalanced |
| Frequency Response | 15 Hz to 40 kHz (± 0.5 dB) |
| THD+N | < 0.1% Typ. 0.05% |
| Headroom | 23 dB |
| Gain | Unity |
| Input and Output Level | -10 dBV |
| 2 | 6.8 kΩ |
| 1 | 2.7 kΩ |
| None | 0 Ω (short to GND) |
| AUDIO | |
| Ambient Operating Environment | 0° C to 55° C |
| Package Type | Cardboard Box |
| WEEE weight | 0.16 lbs. |
| Shipping Weight | 0.21 lbs. |
| Tariff code | 8543.70.9860 |
| Package Dimensions | 2 x 2 x 4 in. |
×
