VOICE-OVER / PAGING MODULE - MANUAL
Click image to enlarge

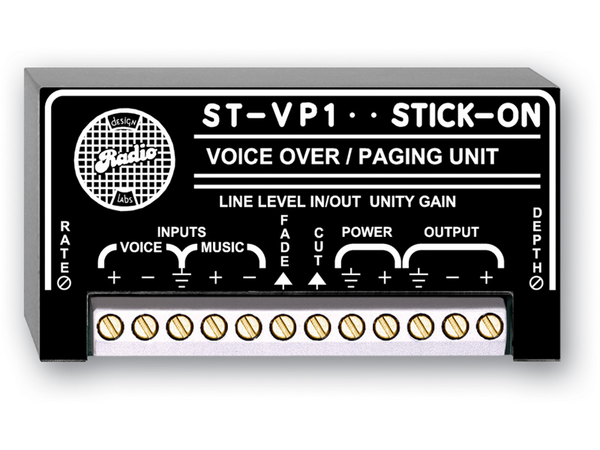

ST-VP1
VOICE-OVER / PAGING MODULE - MANUAL

  • UM : EA

The ST-VP1 is intended for voice-over paging with user adjusted and controlled FADE or CUT between two input sources. This unit is also perfect for voice-overs where precise and consistent fade levels are required. Automatic operation can be achieved when used in conjuction with RDL´s ST-ACR products.

Features:

  • High-Quality Voice-Over Mixing
  • Noiseless Paging
  • Single Input Adapted for Paging or Voice-Over
  • Selectable Fade-Under or Hard-Cut
  • Adjustable Fade DEPTH and RATE
  • Soft Audio Switching
Inputs (2) Balanced line level (or unbalanced)
Input Impedance 20 kΩ
Input Signal Range -20 dBu to +18 dBu
Output +4 dBu balanced (nominal)
Gain Adjustable using multiturn potentiometer
THD+N < 0.01% (20 Hz to 20 kHz, no compression)
Frequency Response 20 Hz to 20 kHz (± 1 dB)
Noise < -70 dB
Indicators (2) 1 LED indicating proper music level 1 LED indicating proper voice level
AGC/Compressor 18 dB range
6 dB compression at normal input level
Attack Time 25 ms
Release Time 2.5 seconds
Voice Trigger Level 24 dB below operating level
Music Fade Depth Adjustable 0 dB to −25 dB, or off
Music Recovery Delay Adjustable 2 seconds to 4 seconds
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED, 24 Vdc @ 35 mA
Package Type Cardboard Box
Tariff code 8543.70.9860
WEEE weight 0.145 lbs.
Shipping Weight 0.2 lbs.
Package Dimensions 2 x 2 x 4 in.
