STRIKEARRAY1 | STRIKE ARRAY 1
STRIKEARRAY1
STRIKE ARRAY 1
STRIKEARRAY1
STRIKE ARRAY 1
- UM : EA
- Estimated Weight: 47.0

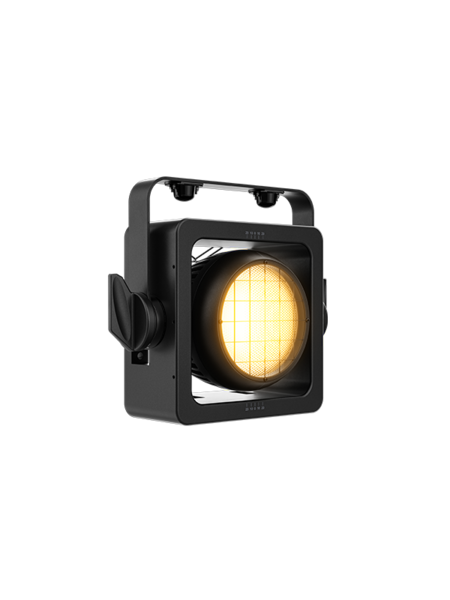

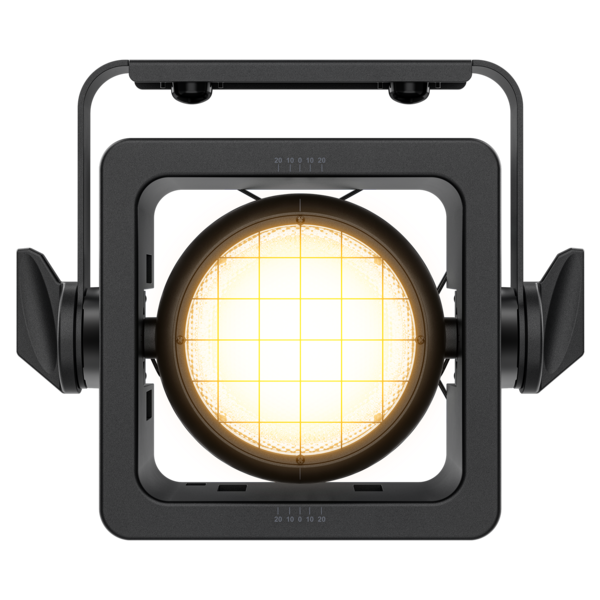

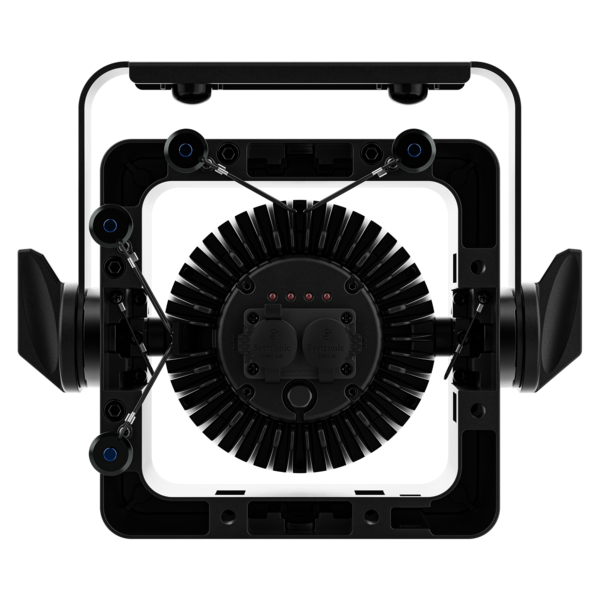

STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

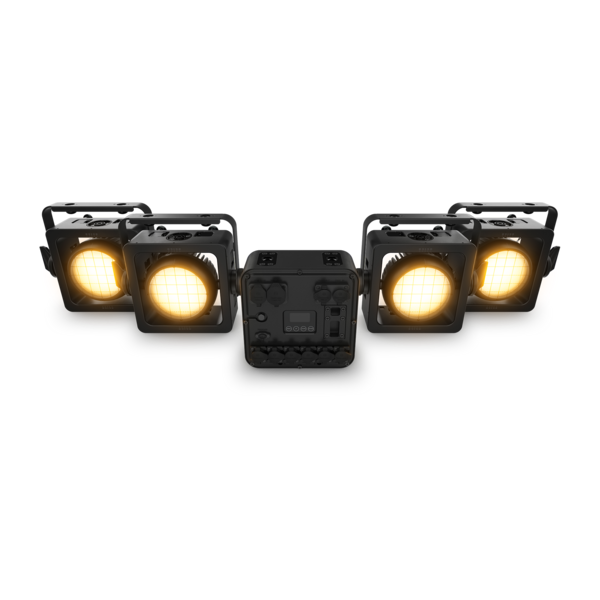

STRIKE Array 1 is a package that includes:
(4) STRIKE Array 1 pods mounted in square frame
(4) Linking cables (1m length)
(4) Hanging brackets for individual truss mounting (“head only yokes”)
(1) Driver (controls and powers up to 8 units)

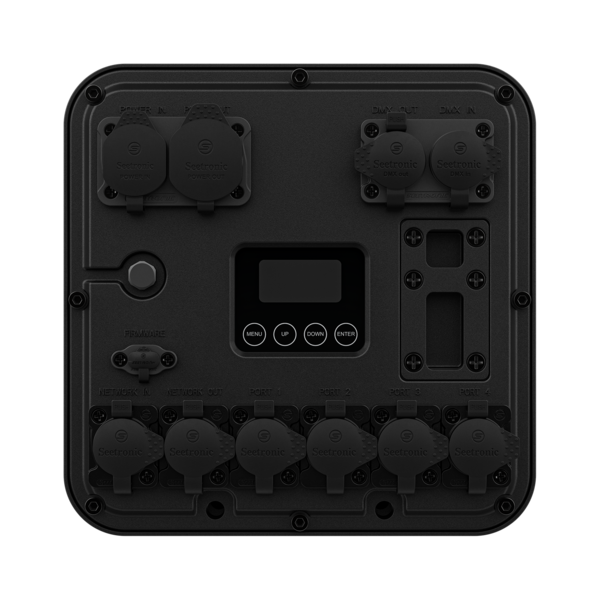

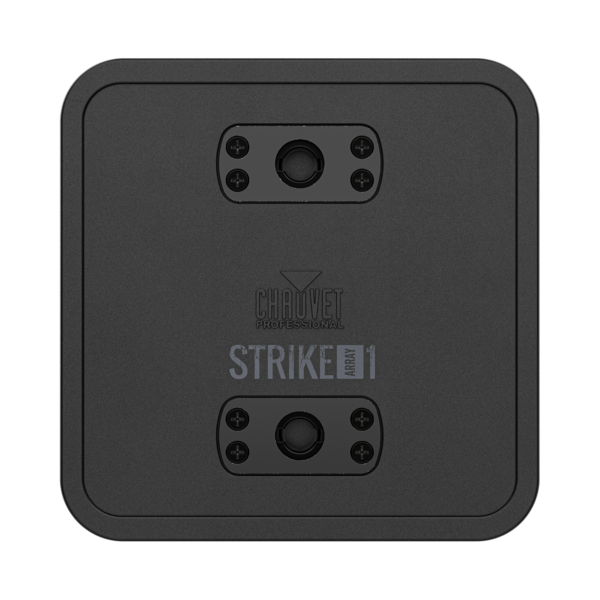

The included remote Driver unit performs automatic addressing of up to (8) STRIKE Array 1 pods for ease of installation.
Features:
- Simplifies setup with a remote driver that automatically addresses up to eight connected pods.
- Mount individual pods with an included yoke or interlock them for scalable array designs.
- Delivers a broadcast-ready 2700 K output with a high CRI of 83.9.
- Provides exceptionally smooth 18-bit dimming curves for seamless fades and transitions.
- Allows precise directional control with manual pan and tilt adjustment on each pod.
- Supports DMX, RDM, ArtNet, and sACN for flexible and professional control integration.
| Light Source (Single Pod) | 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy |
|---|---|
| Light Source (Single Pod) | 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy |
| Color Temperature (at full) | 2657 K |
| CRI | 83.9 |
| Beam Angle | 62.8° |
| Field Angle | 104.5° |
| Lumens (Single Pod) | 4,353 lm @ 5 m |
| Illuminance (total) (Single Pod) | 153 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Device Outputs (4) | 4-pin XLR |
| Data Connectors | 5-pin IP65 XLR, Seetronic Etherkon IP65 |
| Software Connection | USB |
| Cable Length (power) | 5 ft (1.5 m) |
| Total max. cable length (shielded cables) between Driver and last Head | 147 ft (45 m) |
| Control Protocol | DMX, RDM, ArtNet, sACN |
| DMX Channels | 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
